Description

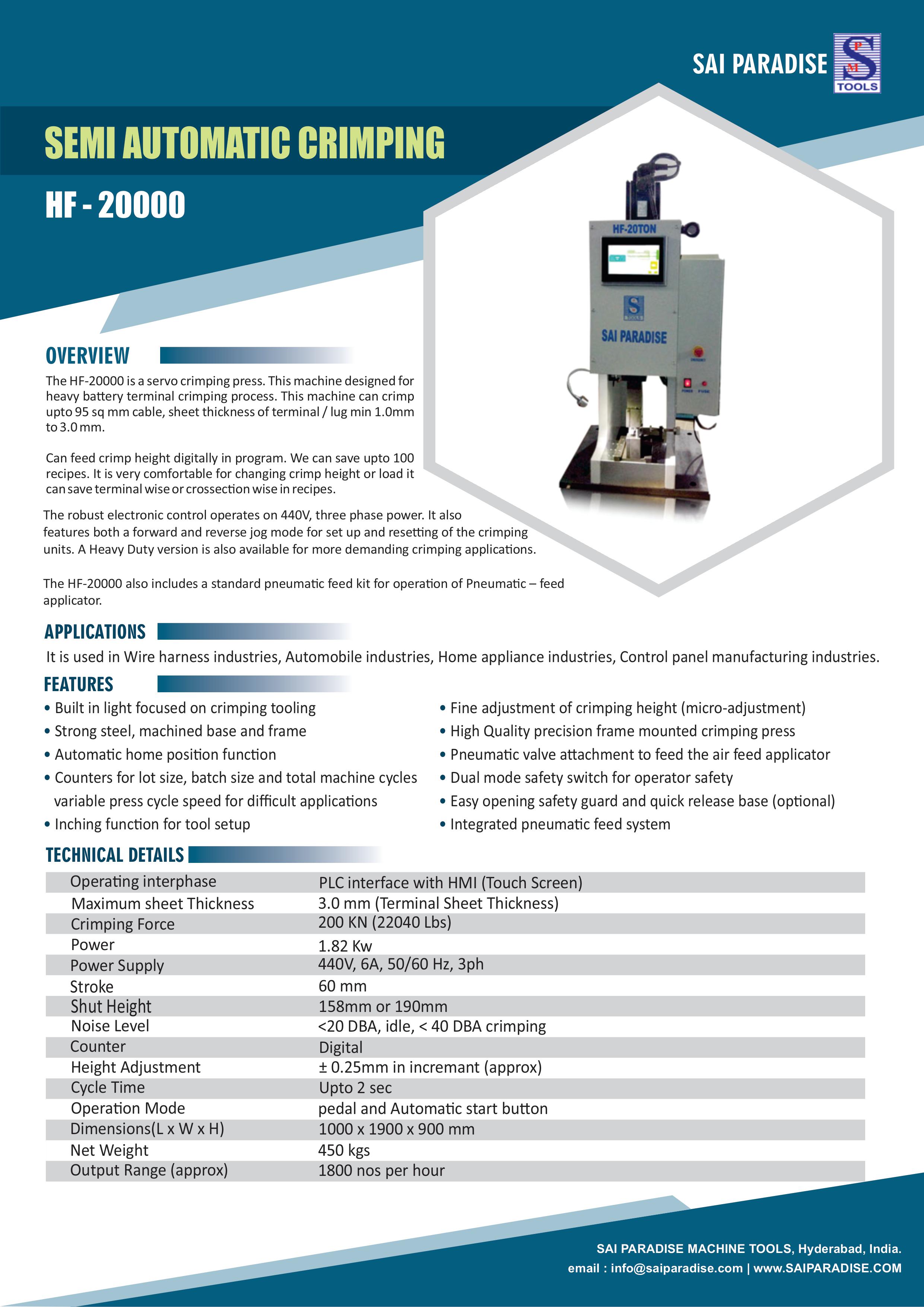

The HF-20000 is a servo crimping press. This machine designed for heavy battery terminal crimping process. This machine can crimp upto 95 sq mm cable, sheet thickness of terminal / lug min 1.0mm to 3.0 mm.
Can feed crimp height digitally in program. We can save upto 100 recipes. It is very comfortable for changing crimp height or load it can save terminal wise or crossection wise in recipes.
The robust electronic control operates on 440V, three phase power. It also features both a forward and reverse jog mode for set up and resetting of the crimping units. A Heavy Duty version is also available for more demanding crimping applications.
The HF-20000 also includes a standard pneumatic feed kit for operation of Pneumatic – feed applicator.
