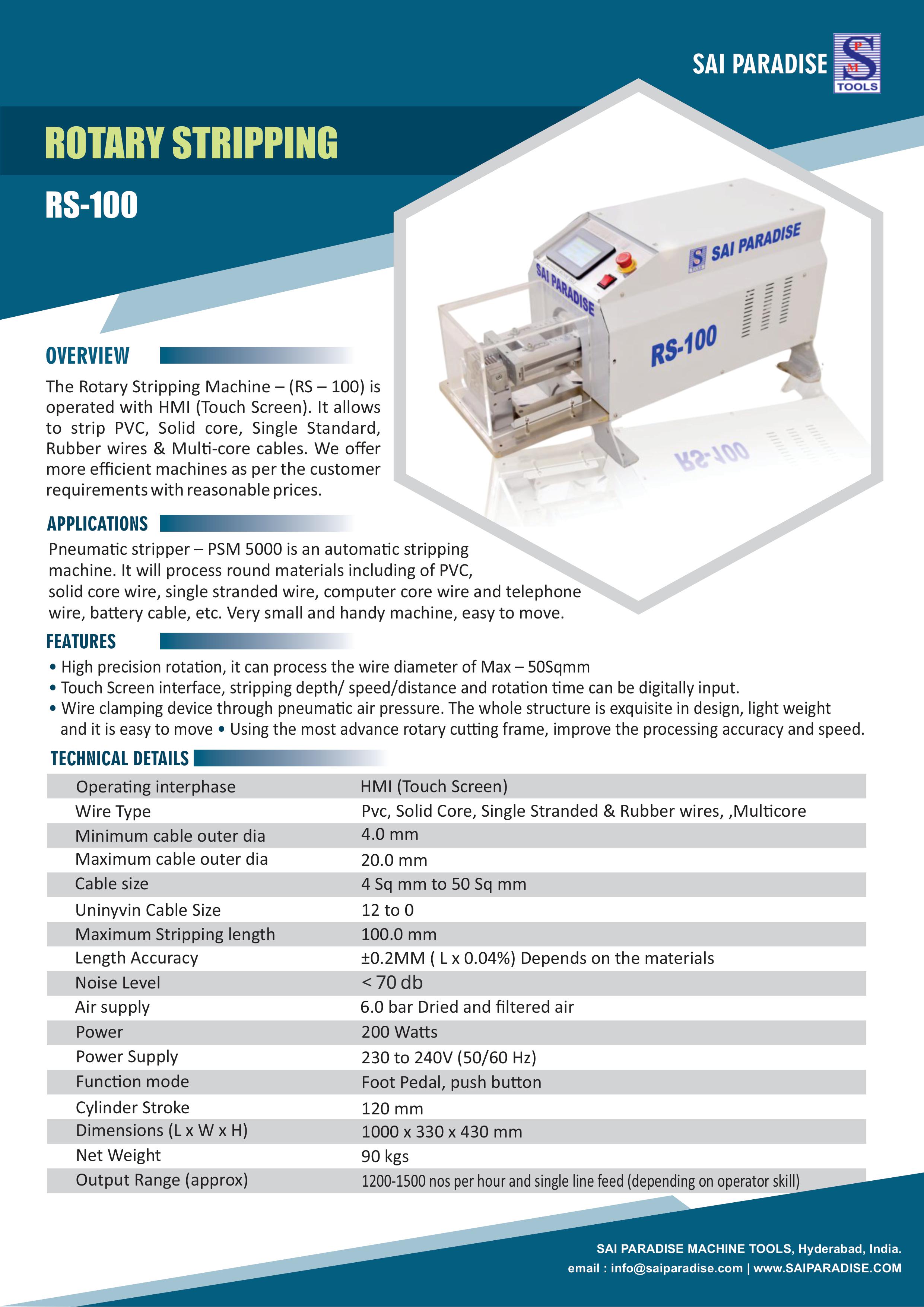

Rotary Stripping (RS – 100)

Description

The Rotary Stripping Machine – (RS – 100) is operated with HMI (Touch Screen). It allows to strip PVC, Solid core, Single Standard, Rubber wires & Multi-core cables. We offer more efficient machines as per the customer requirements with reasonable prices.

Features

High precision rotation, it can process the wire diameter of Max – 50Sqmm
Touch Screen interface, stripping depth/ speed/distance and rotation time can be digitally input
Wire clamping device through pneumatic air pressure
The whole structure is exquisite in design, light weight and it is easy to move
Using the most advance rotary cutting frame, improve the processing accuracy and speed

Applications

Rotary stripping Machine – RS-100 is a semi- automatic rotary stripping machine. It can process round materials including of PVC, solid core wire, single stranded wire, computer core wire and telephone wire, battery cable, etc. Handy machine, easy to move.

Technical Details

Operating interphase	HMI (Touch Screen)
Wire Type	Pvc, Solid Core, Single Stranded & Rubber wires, Multicore
Minimum cable outer dia	4.0 mm
Maximum cable outer dia	20.0 mm
Cable size	4 Sq mm to 50 Sq mm
Uninyvin Cable Size	12 to 0
Maximum Stripping length	100.0 mm
Length Accuracy	±0.2MM ( L x 0.04%) Depends on the materials
Noise Level	< 70 db
Air supply	6.0 bar Dried and filtered air
Power	200 Watts
Power Supply	230 to 240V (50/60 Hz)
Function mode	Foot Pedal, Push Button
Cylinder Stroke	120 mm
Dimensions (L x W x H)	1000 x 330 x 430 mm
Net Weight	90 kgs
Output Range (approx)	1200-1500 nos per hour (depending on operator skill)
