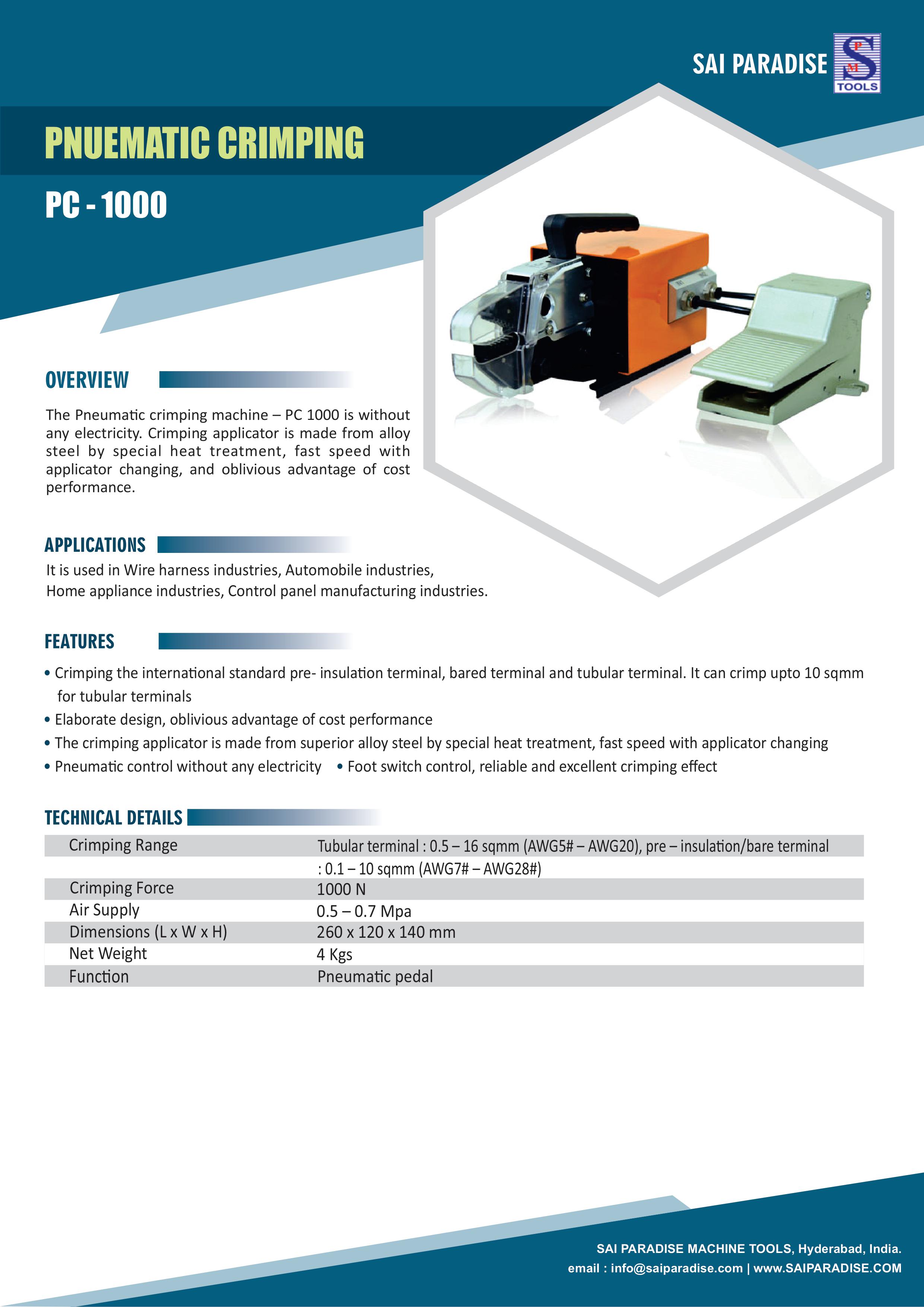

Pnuematic Crimping (PC – 1000)

Description

The Pneumatic crimping machine – PC 1000 is without any electricity. Crimping applicator is made from alloy steel by special heat treatment, fast speed with applicator changing, and oblivious advantage of cost performance.

Features

Crimping the international standard pre- insulation terminal, bared terminal and tubular terminal. It can crimp upto 10 sqmm for tubular terminals
Elaborate design, oblivious advantage of cost performance
The crimping applicator is made from superior alloy steel by special heat treatment, fast speed with applicator changing
Pneumatic control without any electricity
Foot switch control, reliable and excellent crimping effect

Applications

It is used in Wire harness industries, Automobile industries, Home appliance industries, Control panel manufacturing industries.

Technical Details

Crimping Range	Tubular terminal : 0.5 – 16 sqmm (AWG5# – AWG20), pre – insulation/bare terminal: 0.1 – 10 sqmm (AWG7# – AWG28#)
Crimping Force	1000 N
Air Supply	0.5 – 0.7 Mpa
Dimensions (L x W x H)	260 x 120 x 140 mm
Net Weight	4 Kgs
Function	Pneumatic pedal
