Five Roll De Coiler – (CDS – 5)

Description

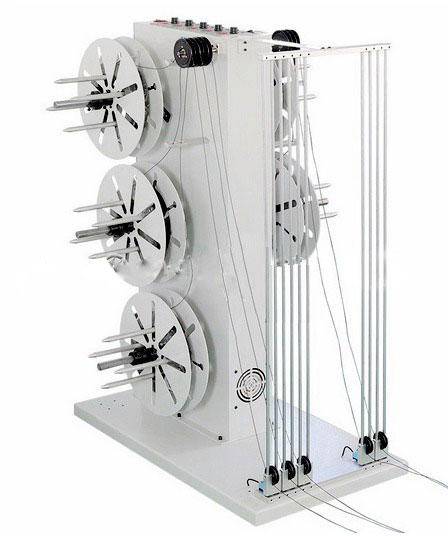

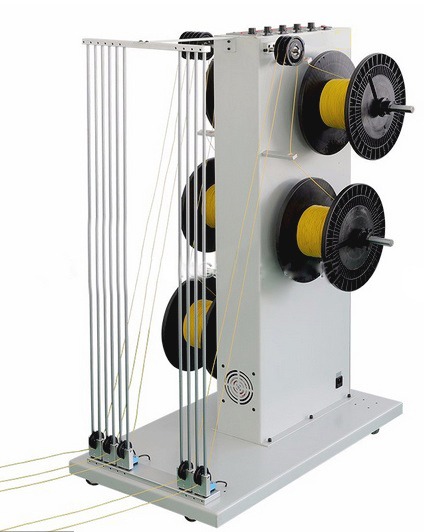

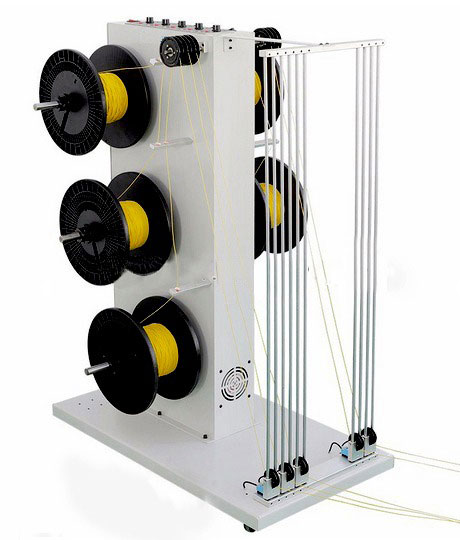

The five roll de coiler – (CDS-5): The five station wire prefeeding machine feeds the wire gently and continuously to the active wire storage, while the intake of the fully automatic wire harness processing machine takes the wire out of the storage in order to further processing, the wire is led under constant tension for trouble free feeding.

Features
  • It feature 5 wire feeding reels which driven by 5 independent motors
  • Each of the 5 reels is able to work individually
  • The moveable dancer pulley allows the feeder to easily respond
  • Variable speed Control
Applications

The five roll de coiler – (CDS-5) is used in Electric Control Panel manufacturing industry, Cable manufacturing industry, Transformers manufacturing industry.

Technical Details
Operating interphase Electrical
Wire Type PVC, Silicon wires etc
Available Wire Dia ɸ0.5 – 4 mm
Cable Max Width 25 mm
Noise Level < 50 db
Air Supply Not Required
Wire Spool Dia 350 mm
Wire Spool Width 250mm
Wire Spool Weight 20 Kgs
Power Supply 220V 50Hz. Single phase
Motor 650 Watts
Dimensions (L x W x H) 900 x 800 x 1250 mm
Net Weight 130 Kgs
