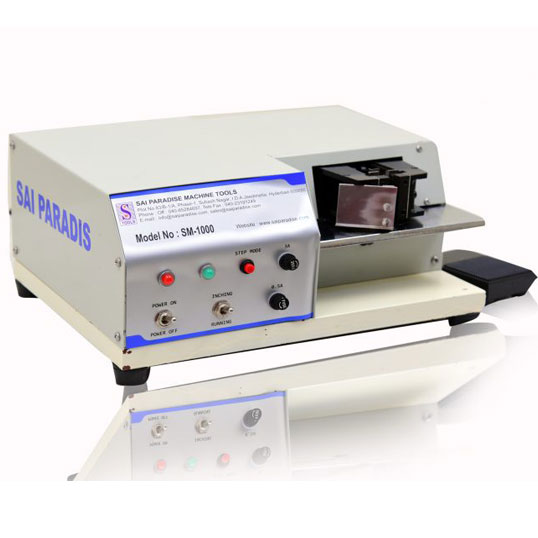

Electric Stripper (SM – 1000)

Description

The SM – 1000 is an electrical wire and cable stripping machine and the perfect solution for stripping discrete wires and small multi conductor cables upto 4.0mm outer dia. This portable compact machine strips lengths upto 15mm.

Features

Extremely short cycle times (approx 1.5 sec)
No blade changeover is necessary
Strips very short cables
Simple machine operations
Robust and reliable design and manufacturing
Stripping lengths – partial strip
Stripping length – full strip
Stripping diameter
Stripping position
Can strip single core as well as multi – core cables
Inch mode option to set the blades as per cables
Foot pedal operation for operator convenience
Less wastage
Low noise

Applications

Wire harness industry, home appliances industries, House wiring.

Technical Details

Maximum Cable Outer Dia	6.0 mm
Minimum Cable Outer Dia	0.5 mm
Maximum cable size	4.0 sq mm
Maximum length	2.0 mm to 15.0 mm
Length Increment	0.1 mm
Length Accuracy	±0.1MM ( L x 0.02%) Depends on the materials
Programme memory capacity	Upto 100 no’s with all processing parameters
Noise Level	< 70 db
Power	200 watts
Power Supply	230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L x W x H)	300 x 400 x 150 mm
Net Weight	15 kgs
Output Range (approx)	2500 nos per hour (Depending on materials & Operator)
