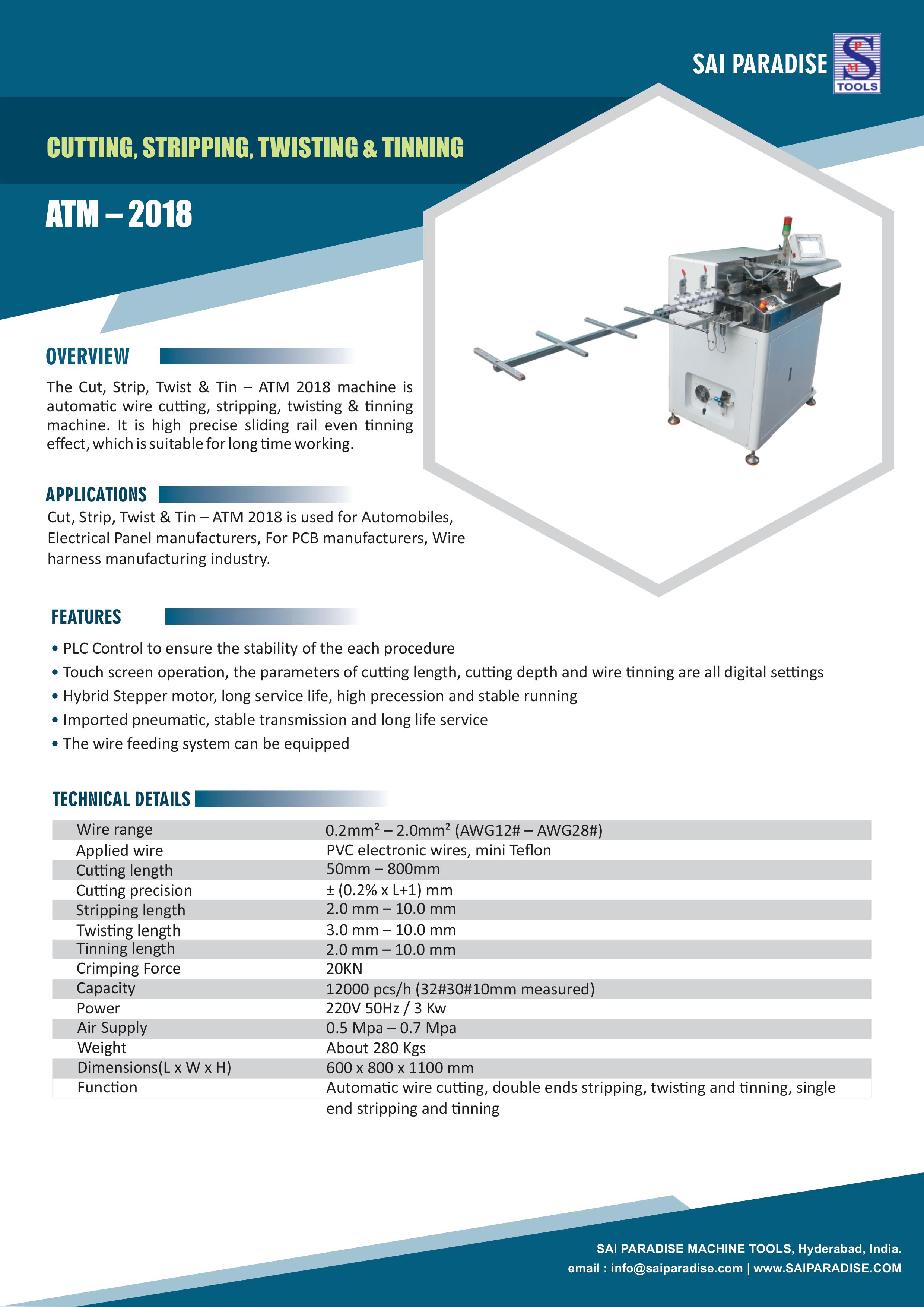

Cutting, Stripping, Twisting & Tinning (ATM – 2018)

Description

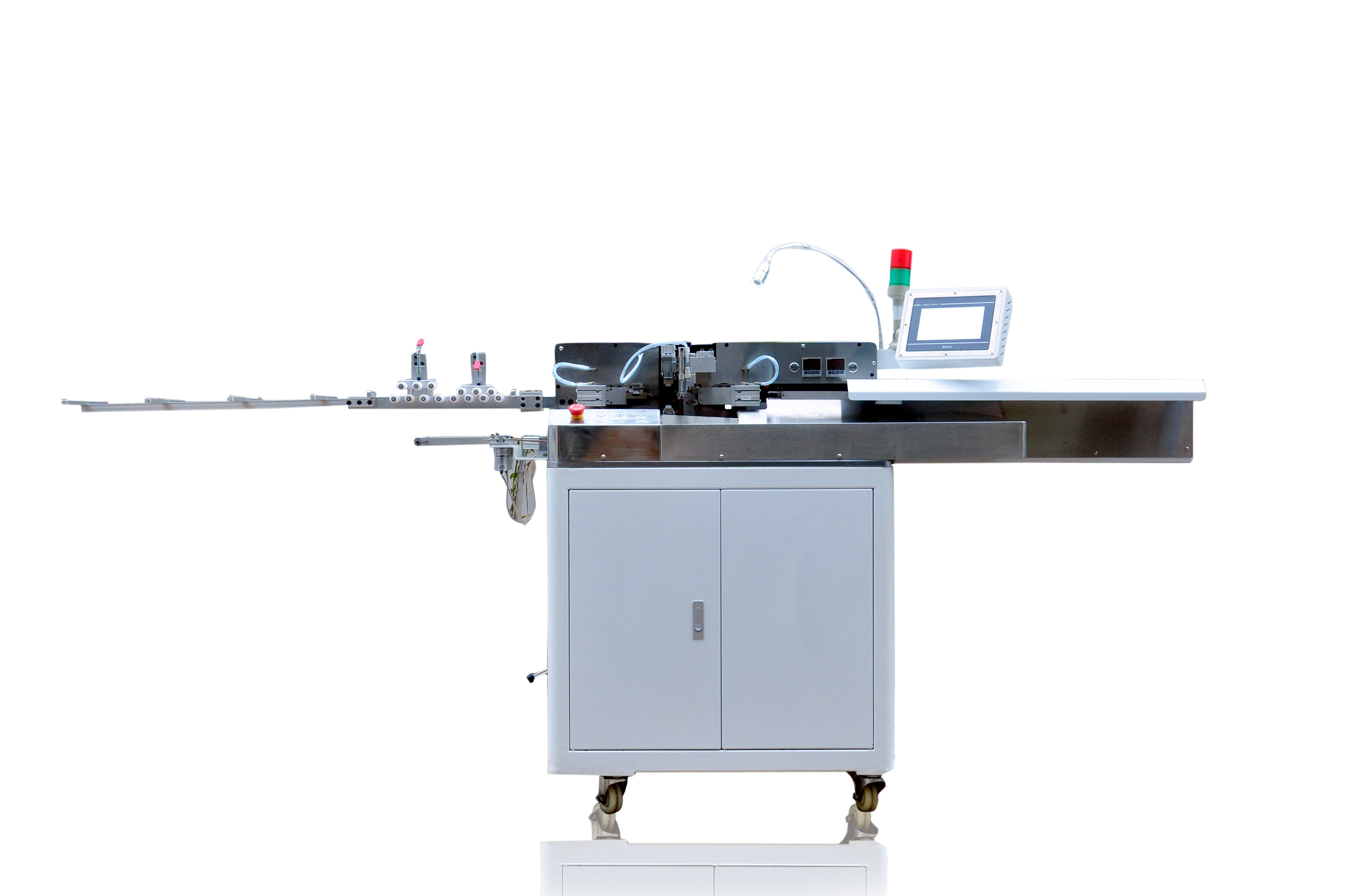

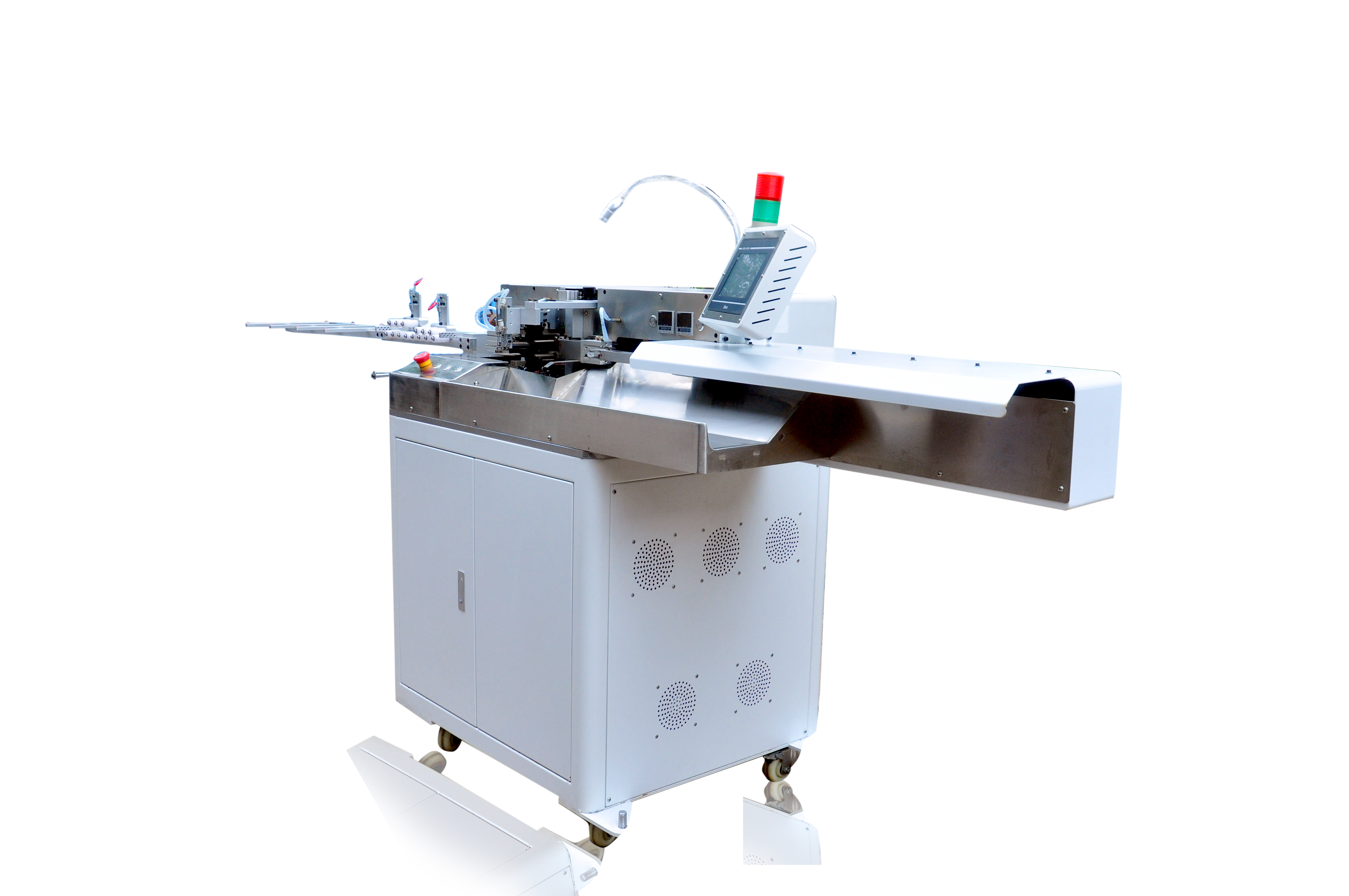

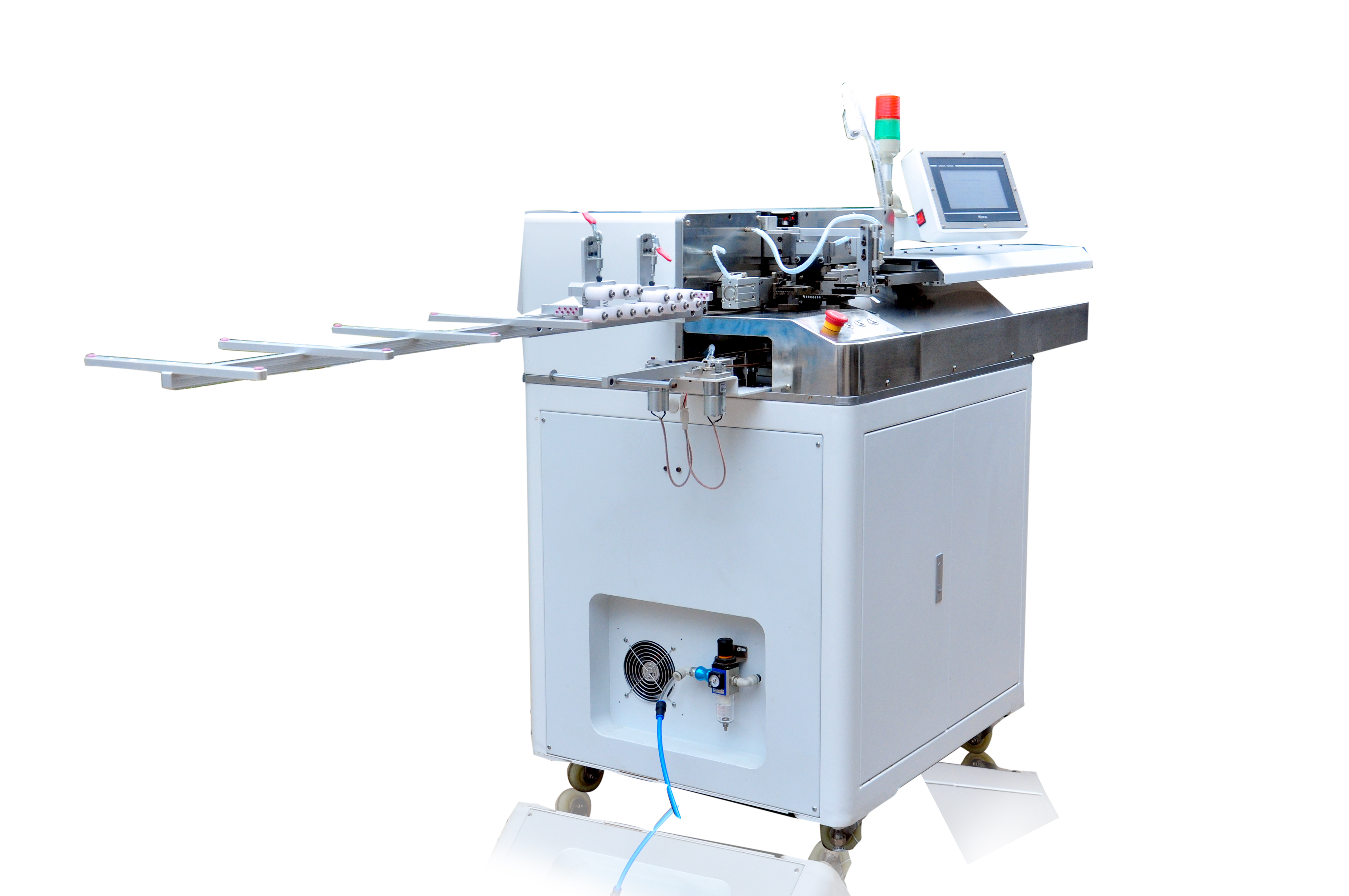

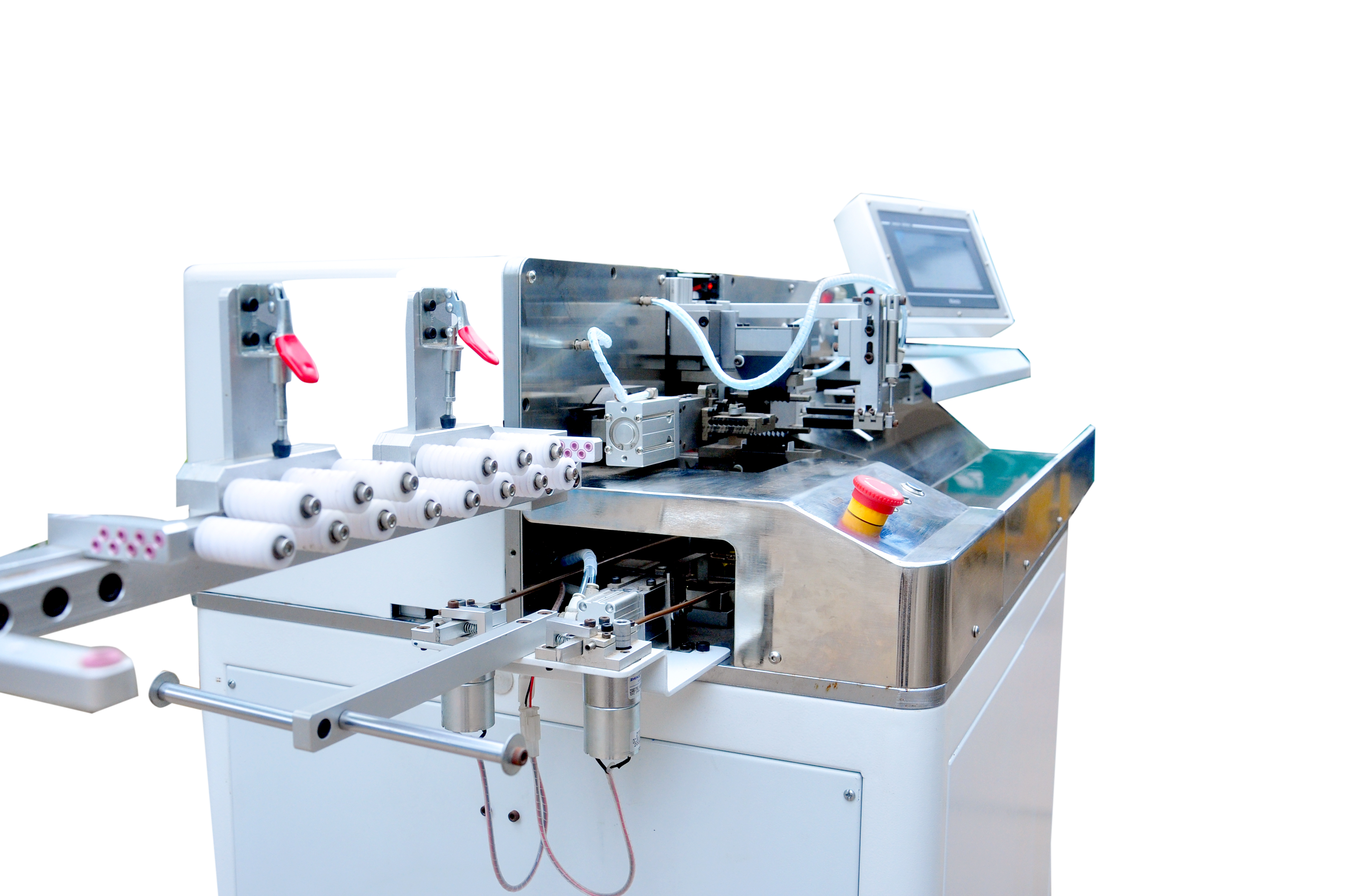

The Cut, Strip, Twist & Tin – ATM 2018 machine is automatic wire cutting, stripping, twisting & tinning machine. It is high precise sliding rail even tinning effect, which is suitable for long time working.

Features

PLC Control to ensure the stability of the each procedure
Touch screen operation, the parameters of cutting length, cutting depth and wire tinning are all digital settings
Hybrid Stepper motor, long service life, high precession and stable running
Imported pneumatic, stable transmission and long life service
The wire feeding system can be equipped

Applications

Cut, Strip, Twist & Tin – ATM 2018 is used for Automobiles, Electrical Panel manufacturers, For PCB manufacturers, Wire harness manufacturing industry.

Technical Details

Wire range	0.2mm² – 2.0mm² (AWG12# – AWG28#)
Applied wire	PVC electronics wires, mini Teflon
Cutting length	50mm – 800mm
Cutting precision	± (0.2% x L+1) mm
Stripping length	2.0 mm – 10.0 mm
Twisting length	3.0 mm – 10.0 mm
Tinning length	2.0 mm – 10.0 mm
Capacity	12000 pcs/h (32#30#10mm measured)
Power	220V 50Hz / 3 Kw
Air supply	0.5 Mpa – 0.7 Mpa
Weight	About 280 Kgs
Dimensions(L x W x H)	600 x 800 x 1100 mm
Function	Automatic wire cutting, double ends stripping, twisting and tinning, single end stripping and tinning
