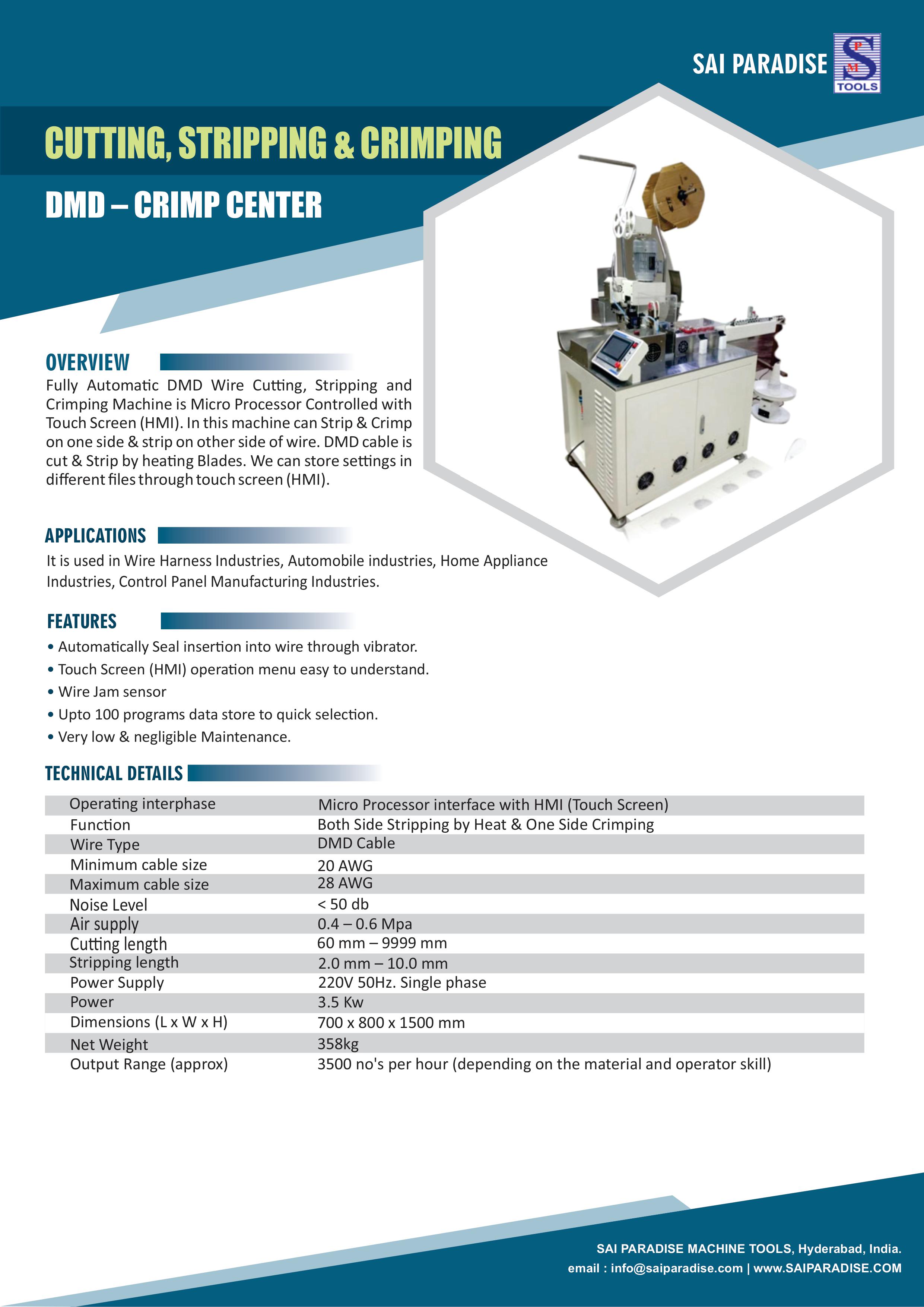

Cutting, Stripping & Crimping – (DMD – Crimp Center)

Description

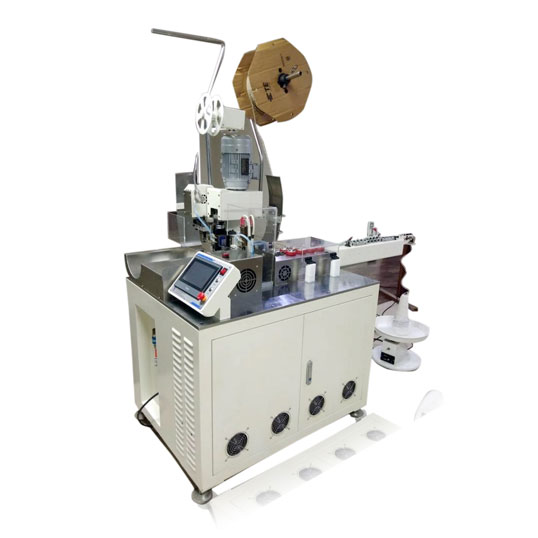

Fully Automatic DMD Wire Cutting, Stripping and Crimping Machine is Micro Processor Controlled with Touch Screen (HMI). In this machine can Strip & Crimp on one side & strip on other side of wire. DMD cable is cut & Strip by heating Blades. We can store settings in different files through touch screen (HMI).

Features

Automatically Seal insertion into wire through vibrator.
Touch Screen (HMI) operation menu easy to understand.
Wire Jam sensor.
Upto 100 programs data store to quick selection.
Very low & negligible Maintenance.

Applications

It is used in Wire Harness Industries, Automobile industries, Home Appliance Industries, Control Panel Manufacturing Industries.

Technical Details

Operating Interphase	Micro Processor interface with HMI (Touch Screen)
Function	Both Side Stripping by Heat & One Side Crimping
Wire Type	DMD Cable
Minimum cable size	20 AWG
Maximum cable size	28 AWG
Noise Level	< 50 db
Air supply	0.4 – 0.6 Mpa
Cutting length	60 mm – 9999 mm
Stripping length	2.0 mm – 10.0 mm
Power Supply	220V 50Hz. Single phase
Power	3.5 Kw
Dimensions (L x W x H)	700 x 800 x 1500 mm
Net Weight	358kg
Output Range (approx)	3500 no's per hour (depending on the material and operator skill)
