Cutting, Stripping & Crimping – (Crimp Center – 2)

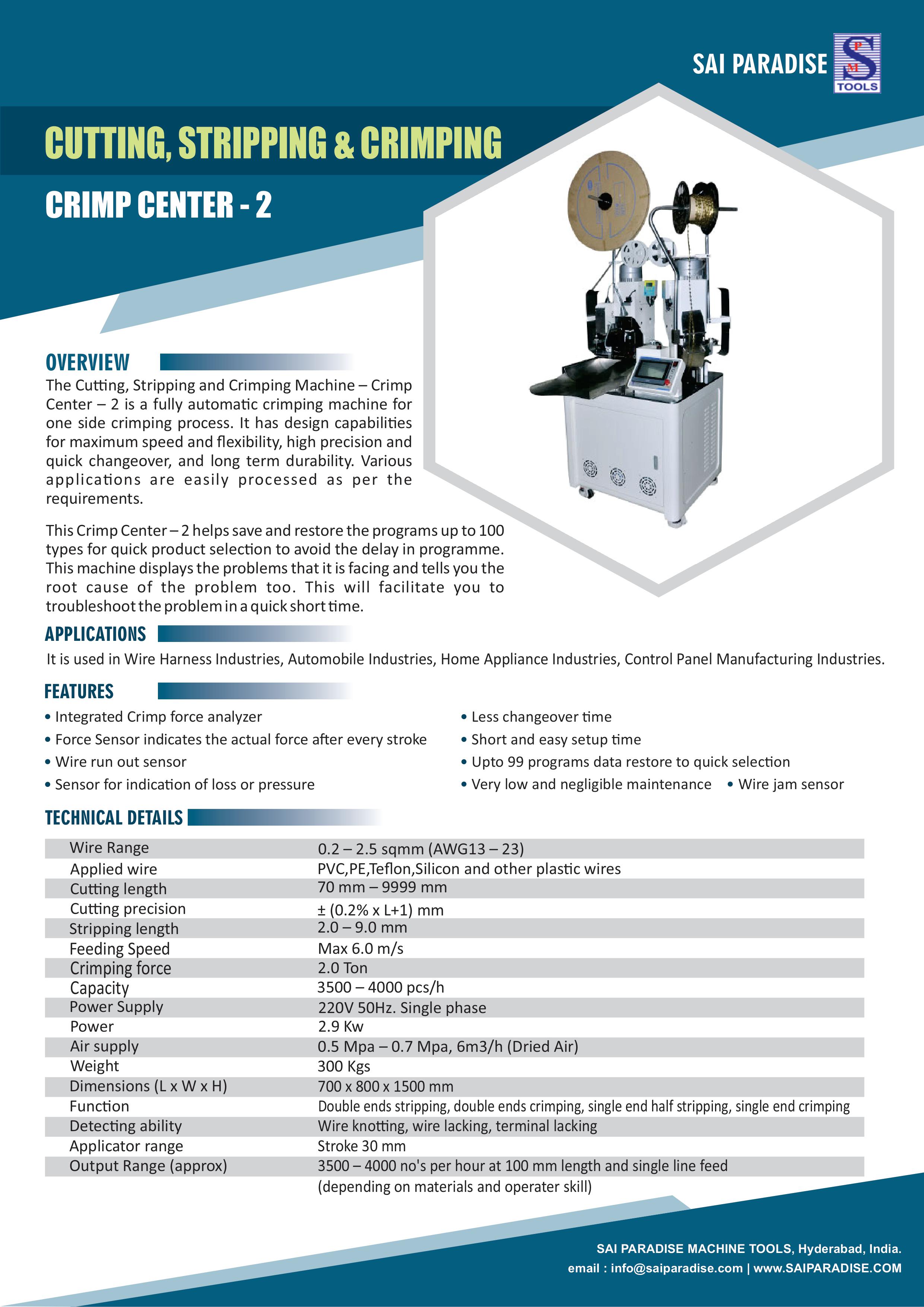

Description

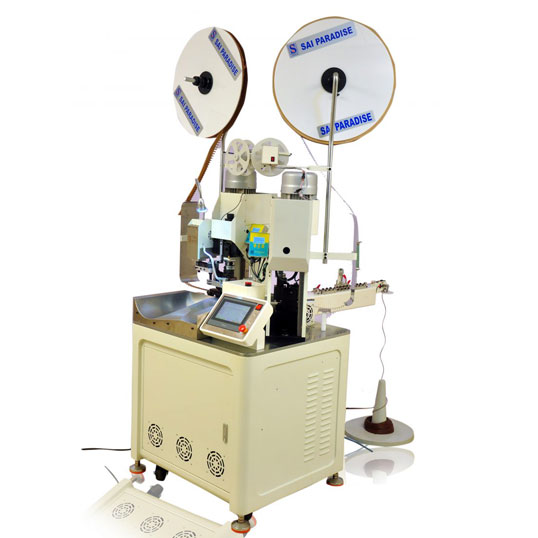

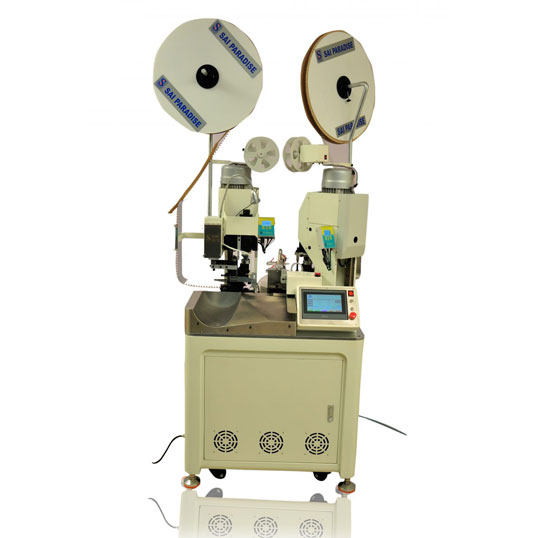

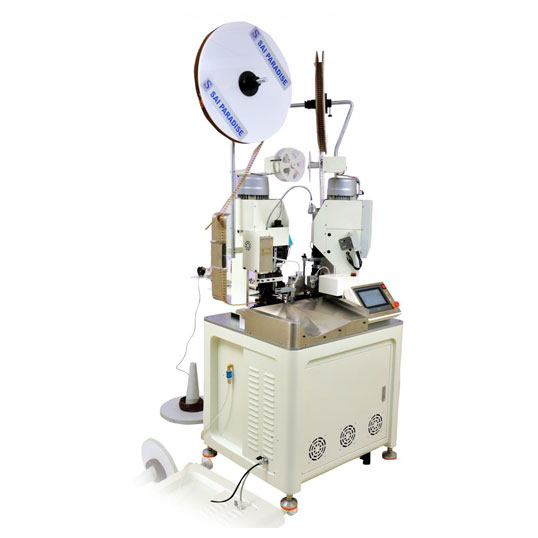

The Cutting, Stripping and Crimping Machine – Crimp Center – 2 is a fully automatic crimping machine for one side crimping process. It has design capabilities for maximum speed and flexibility, high precision and quick changeover, and long term durability. Various applications are easily processed as per the requirements.

This Crimp Center – 2 helps save and restore the programs up to 100 types for quick product selection to avoid the delay in programme. This machine displays the problems that it is facing and tells you the root cause of the problem too. This will facilitate you to troubleshoot the problem in a quick short time.

Features
  • Integrated Crimp force analyzer
  • Force Sensor indicates the actual force after every stroke
  • Wire run out sensor
  • Sensor for indication of loss or pressure
  • Wire jam sensor
  • Less changeover time
  • Short and easy setup time
  • Upto 100 programs data restore to quick selection
  • Very low and negligible maintenance
Applications

It is used in Wire Harness Industries, Automobile Industries, Home Appliance Industries, Control Panel Manufacturing Industries.

Technical Details
Wire range 0.2 – 2.5 sqmm (AWG13 – 23)
Applied wire PVC,PE,Teflon,Silicon and other plastic wires
Cutting length 70 mm – 9999 mm
Cutting precision ± (0.2% x L+1) mm
Stripping length 2.0 – 9.0 mm
Feeding Speed Max 6.0 m/s
Crimping force 2.0 Ton
Capacity 3500 – 4000 pcs/h
Power Supply 220V 50Hz. Single phase
Power 2.9 Kw
Air supply 0.5 Mpa – 0.7 Mpa, 6m3/h (Dried Air)
Weight 300 Kgs
Dimensions (L x W x H) 700 x 800 x 1500 mm
Function Double ends stripping, double ends crimping, single end half stripping, single end crimping
Detecting ability Wire knotting, wire lacking, terminal lacking
Applicator range Stroke 30 mm
Output Range (approx) 3500 – 4000 no's per hour at 100 mm length and single line feed (depending on materials and operater skill)
