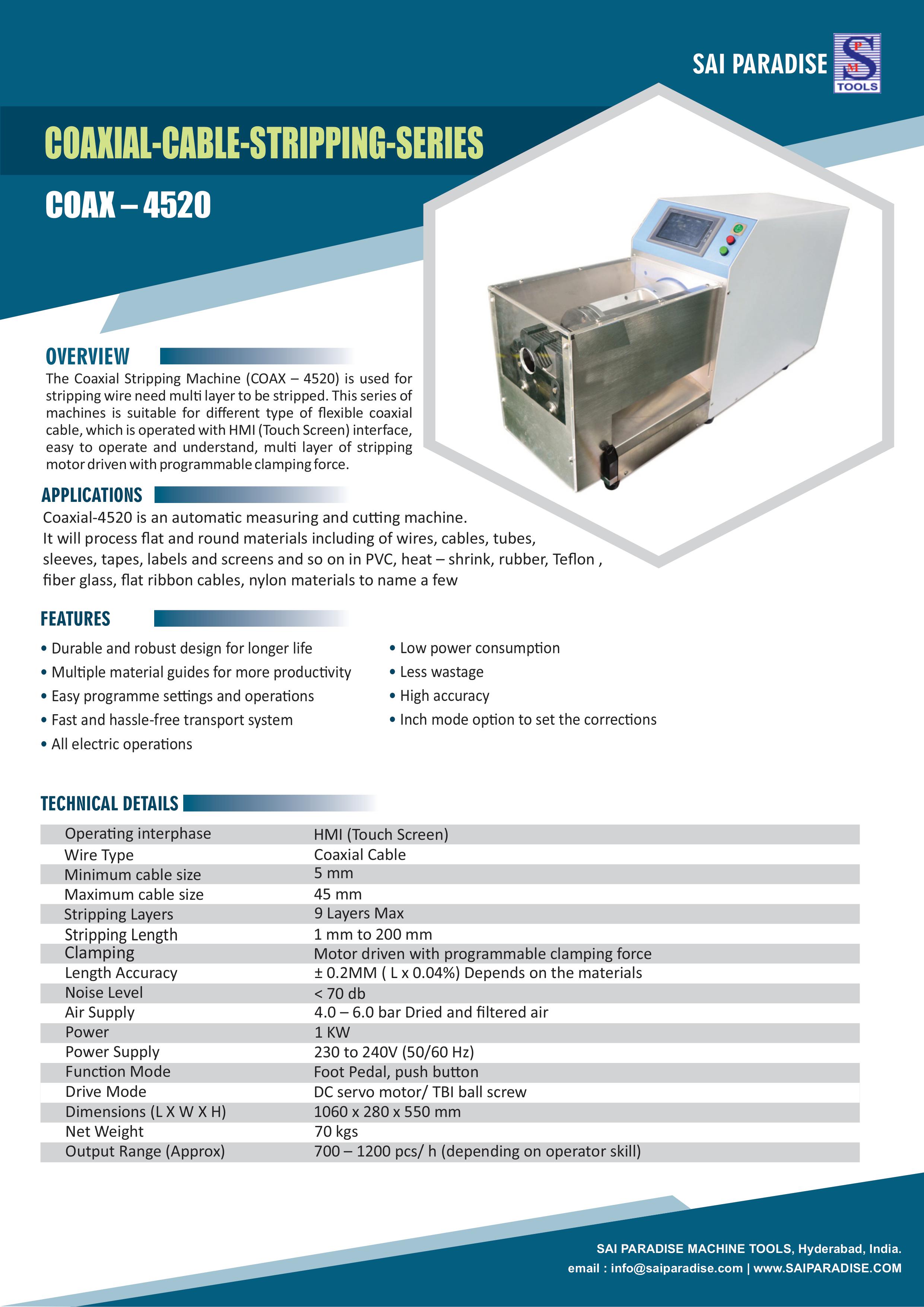

Coaxial-Cable-Stripping-Series-coax-4520

Description

The Coaxial Stripping Machine (COAX – 4520) is used for stripping wire need multi layer to be stripped. This series of machines is suitable for different type of flexible coaxial cable, which is operated with HMI (Touch Screen) interface, easy to operate and understand, multi layer of stripping motor driven with programmable clamping force.

Features

Durable and robust design for longer life
Multiple material guides for more productivity
Easy programme settings and operations
Fast and hassle-free transport system
All electric operations
Low power consumption
Less wastage
High accuracy
Inch mode option to set the corrections

Applications

Coaxial-4520 is an automatic measuring and cutting machine. It will process flat and round materials including of wires, cables, tubes, sleeves, tapes, labels and screens and so on in PVC, heat – shrink, rubber, Teflon , fiber glass, flat ribbon cables, nylon materials to name a few

Technical Details

Operating Interphase	HMI (Touch Screen)
Wire Type	Coaxial Cable
Minimum cable outer dia	5 mm
Maximum cable outer dia	45 mm
Stripping Layers	9 Layers Max
Stripping length	1 mm to 200 mm
Clamping	Motor driven with programmable clamping force
Length Accuracy	±0.2MM ( L x 0.04%) Depends on the materials
Noise Level	< 70 db
Air supply	4.0 – 6.0 bar Dried and filtered air
Power	1 KW
Power Supply	230 to 240V (50/60 Hz)
Function mode	Foot Pedal, push button
Drive Mode	DC servo motor/ TBI ball screw
Dimensions (L x W x H)	1060 x 280 x 550 mm
Net Weight	70 kgs
Output Range (approx)	700 – 1200 pcs/ h (depending on operator skill)
