Cable Winding & Tying – (WT – 999)

Description

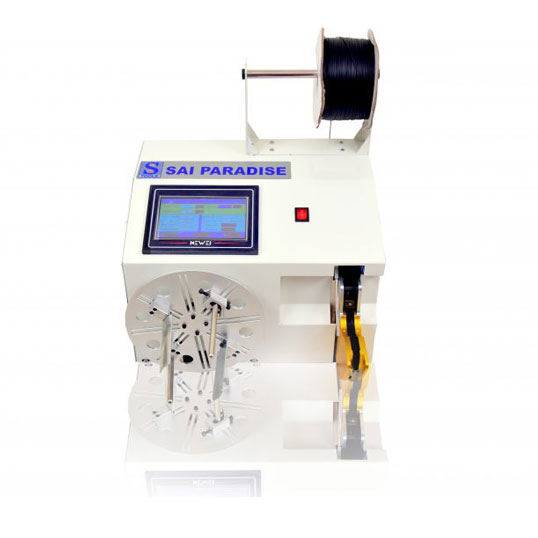

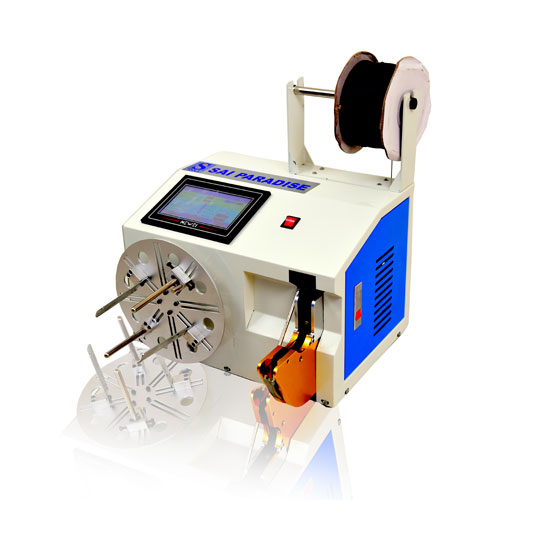

The winding and tying machine – (WT – 999) has simple operation and adjustment, stable running and low failure rate. This machine is equipped with winding motor and controlled by PLC touching screen.

Features

This machine is equipped with winding motor, and controlled by PLC touching screen
The time belt length can be adjusted and set through HMI
The winding laps and speed can be adjusted and set through HMI

Applications

Winding and Tying machine – (WT – 999) is widely used in home appliances, automobile industry, and tale communication.

Technical Details

Tying Belt Length	82 – 140 mm
Tying Diameter	15 - 40 mm

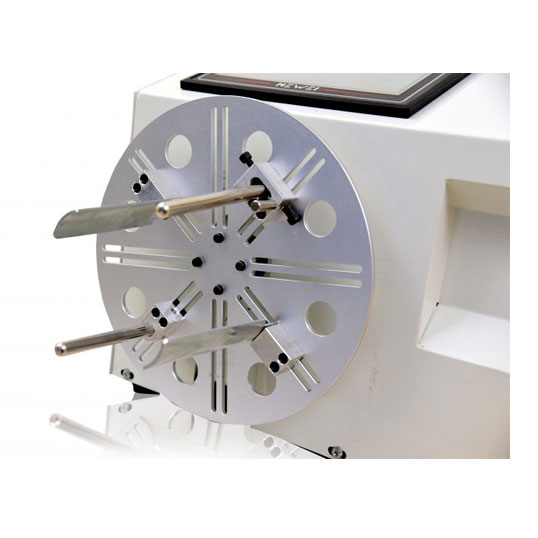

Winding Outer Diameter	62 - 160 mm
Tying Speed	0.6 sec / time
Winding Speed	1-10 laps / sec
Tying Belt	Encapsulated Iron Core
Power	AC 220V 60HZ
Rate Power	260 W
Cutting Tolerance	±0.1 mm
Dimensions (L x H x T)	460 X 500 X 310 mm
Weight	40 kgs
