Cable De Splooer – (CDH – 1)

Description

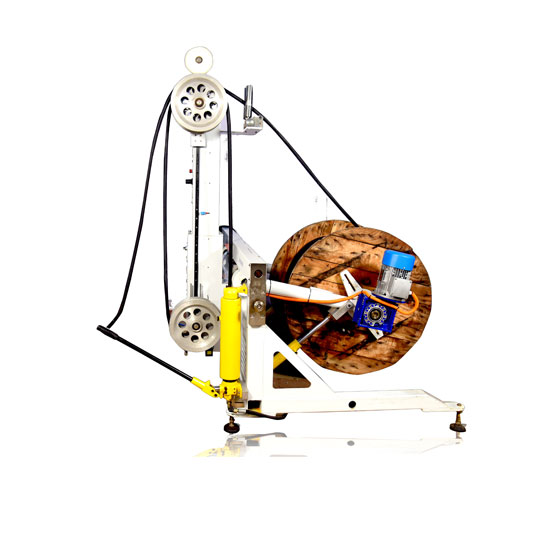

The Cable De Slooper – (CDH – 1) consists of wooden and plastic cable try of diameter Ø800mm – Ø1200mm outer dia. Cable try inner diameter Ø80mm (other size can be special ordered). Feeding power can be adjustable. Effectively saving production cost and raising the productivity.

Features

Suitable for computerized wire cutting and stripping machine for big power cable, to ensure the stability of wire feeding
Effectively saving production cost and raising the productivity
It can be custom – made if customer requires

Applications

The Cable De Slooper – (CDH – 1) is used in Electric Control Panel manufacturing industry, Cable manufacturing industry, Transformers manufacturing industry.

Technical Details

Material of the Cable Tray	Wooden or plastic
Cable Tray Outer Diameter range	Ø800mm – Ø1200mm
Cable Tray Inner Diameter	80mm (Other size can be special oredered)
Bearing Weight Range	0-2000 Kgs
Feeding Speed	adjustable
Motor	5.5 Kw
Power Supply	380V 50Hz
Dimensions (L x W x H)	4200 x 1700 x 1800 mm
Net Weight	Above 400 Kgs
