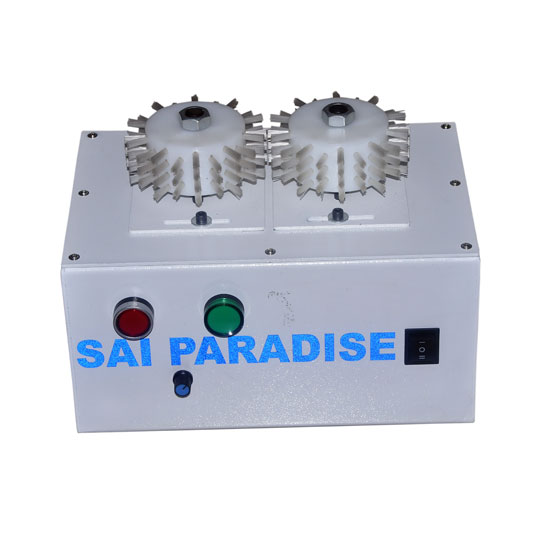

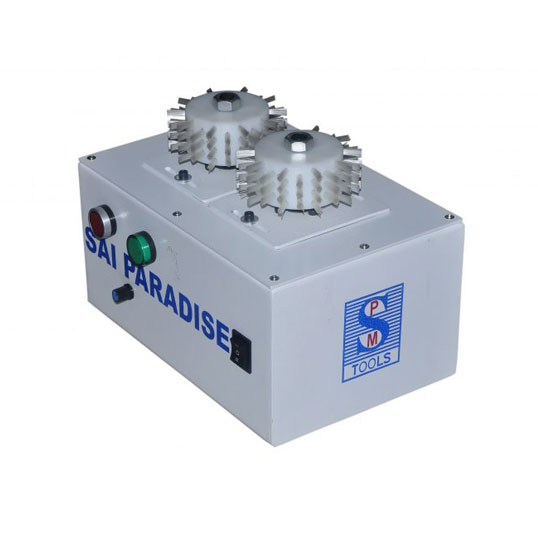

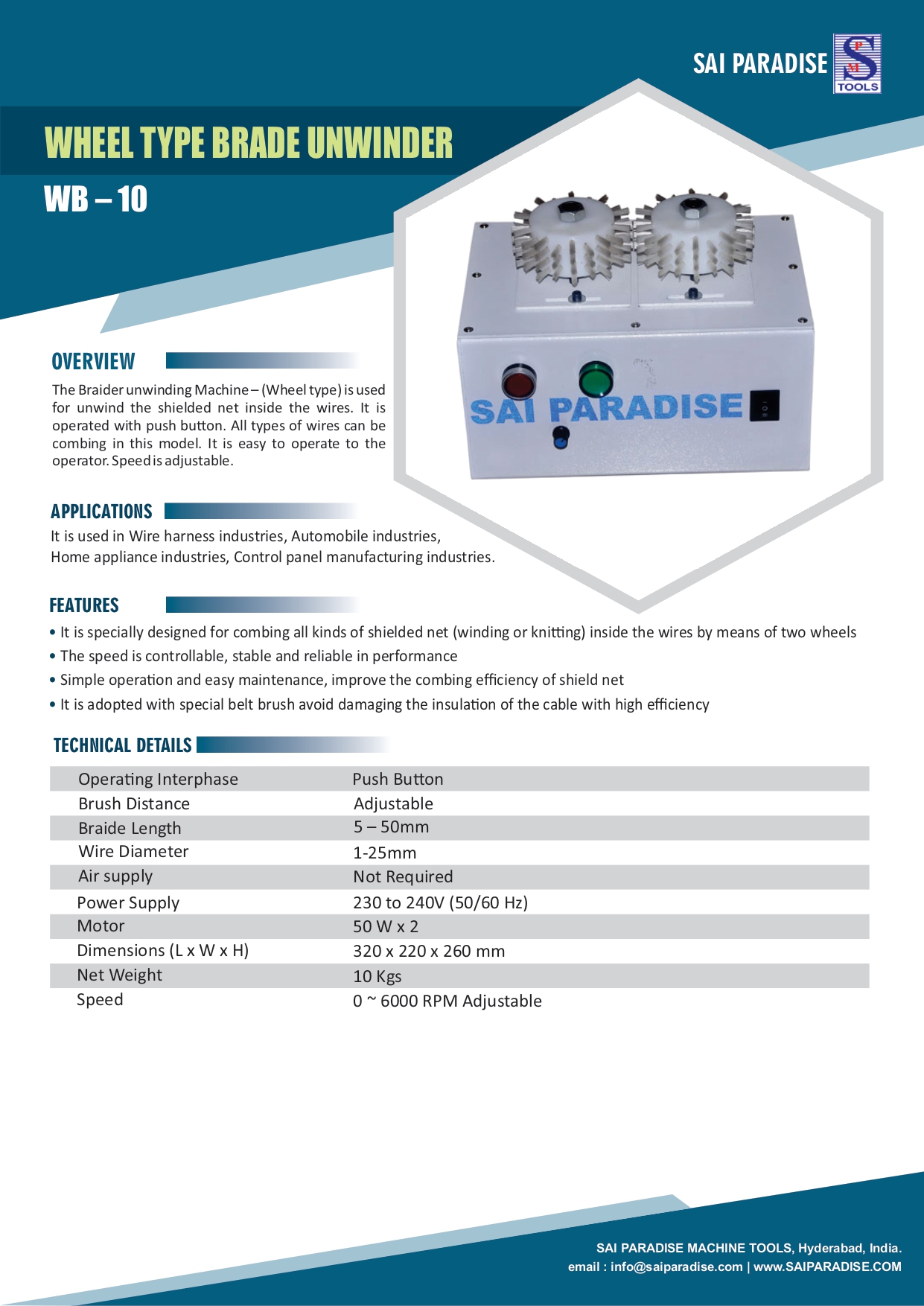

Wheel Type Braid Unwinder – (WB – 10)

Description

The Braid unwinding Machine – (Wheel type) is used for unwind the shielded net inside the wires. It is operated with push button. All types of wires can be combing in this model. It is easy to operate. Speed is adjustable.

Features

It is specially designed for combing all kinds of shielded net (winding or knitting) inside the wires by means of two wheels
The speed is controllable, stable and reliable in performance
Simple operation and easy maintenance, improve the combing efficiency of shield net
It is adopted with special brush to avoid damaging the insulation of the cable with high efficiency

Applications

It is used in Wire harness industries, Automobile industries, Home appliance industries, Control panel manufacturing industries.

Technical Details

Operating Interphase	Push Button
Brush Distance	Adjustable
Braid Length	100 mm Max
Wire Diameter	1 - 10 mm
Air supply	Not Required
Power	1.0 Kw
Power Supply	230 V (50/60 Hz)
Dimensions (L x W x H)	300 x 300 x 150 mm
Net Weight	10 Kgs
Speed	0 ~ 6000 RPM Adjustable
