Strip Twisting Machine

Description

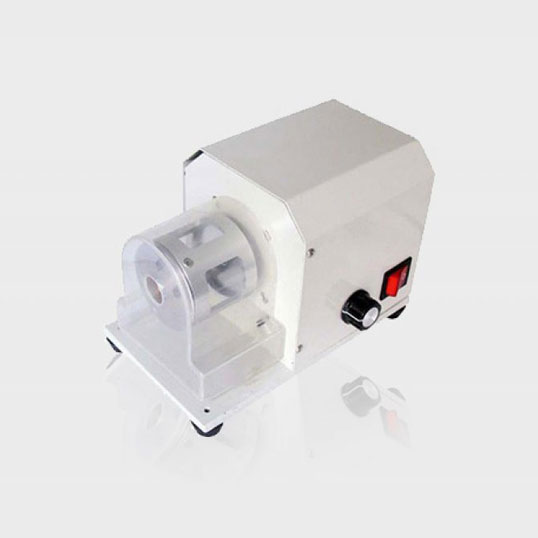

The ST – 10 is single blade centrifugal rotary wire stripper and twister. It will strip and twist most insulations from solid and standard wires (PVC, Teflon, P.T.F.E, Nylon). Strip length and blade depth adjustments must be made while the machine is running and this machine can also be used to remove insulation slugs and twist together strands of standard conductor.

Advantages
  • Low Cost
  • Less Noise
  • Easy to Use and wire guide change
Additional Information

Lorem, ipsum dolor sit amet consectetur adipisicing elit. Qui perferendis, iure excepturi aut odit magni necessitatibus eveniet minima tenetur vitae accusantium, delectus est commodi, pariatur doloribus suscipit sed, cupiditate ea.

Product details
Output per Hour 1500 nos (approx)
Dimensions 250 x 110 x 150 mm
Power 230 V AC
Weight 5 Kgs
Maximum Strip Length 15 mm
Minimum Strip Length 3.0 mm
Model ST – 10
Minimum Wire Dia 1.8 mm
Maximum Wire Dia 4.0 mm
