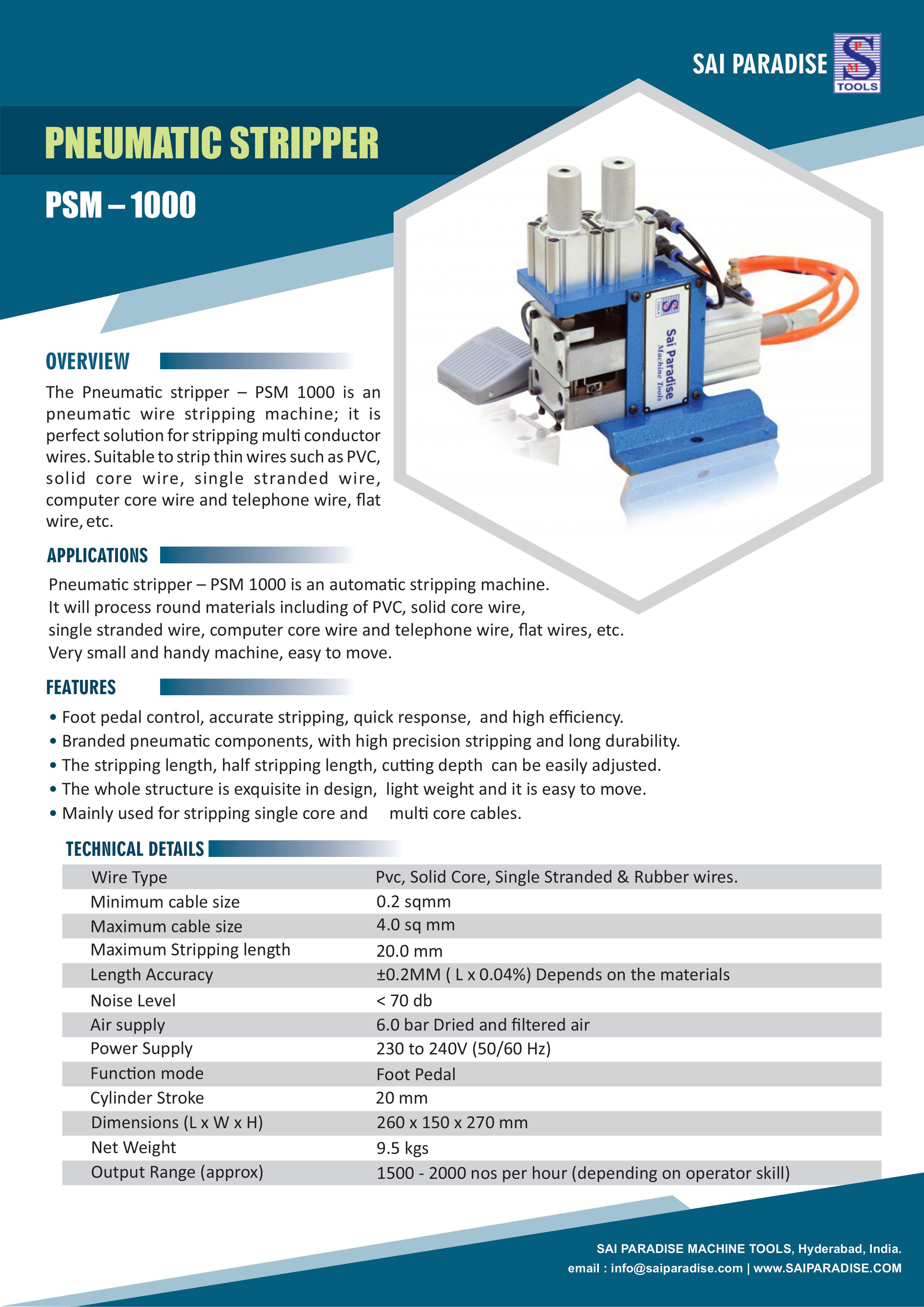

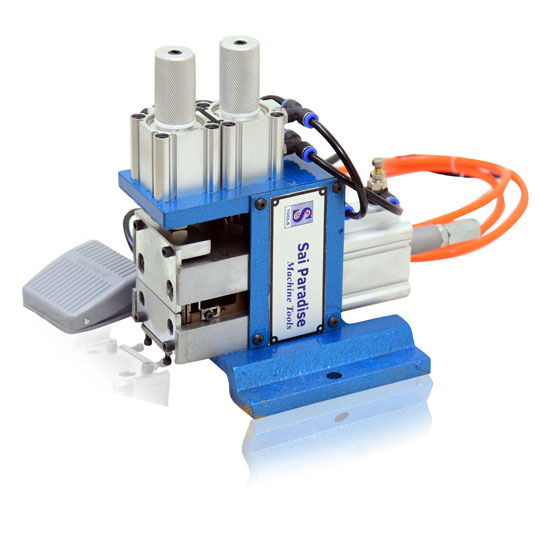

Pneumatic Stripper (PSM – 1000)

Description

The Pneumatic stripper – PSM 1000 is an pneumatic wire stripping machine; it is perfect solution for stripping multi conductor wires. Suitable to strip thin wires such as PVC, solid core wire, single stranded wire, computer core wire and telephone wire, flat wire, etc.

Features

Foot pedal control, accurate stripping, quick response, and high efficiency
Branded pneumatic components, with high precision stripping and long durability
The stripping length, half stripping length, cutting depth can be easily adjusted
The whole structure is exquisite in design, light weight and it is easy to move
Mainly used for stripping single core and multi core cables

Applications

Pneumatic stripper – PSM 1000 is an automatic stripping machine. It will process round materials including of PVC, solid core wire, single stranded wire, computer core wire and telephone wire, flat wires, etc. Very small and handy machine, easy to move.

Technical Details

Wire Type	Pvc, Solid Core, Single Standed & Rubber wires
Minimum cable size	0.2 sqmm
Maximum cable size	4.0 sq mm
Maximum Stripping length	20.0 mm
Length Accuracy	±0.2MM ( L x 0.04%) Depends on the materials
Noise Level	< 70 db
Air supply	6.0 bar Dried and filtered air
Power Supply	230 to 240V (50/60 Hz)
Function mode	Foot Pedal
Cylinder Stroke	20 mm
Dimensions (L x W x H)	260 x 150 x 270 mm
Net Weight	9.5 kgs
Output Range (approx)	1500 - 2000 nos per hour (depending on operator skill)
