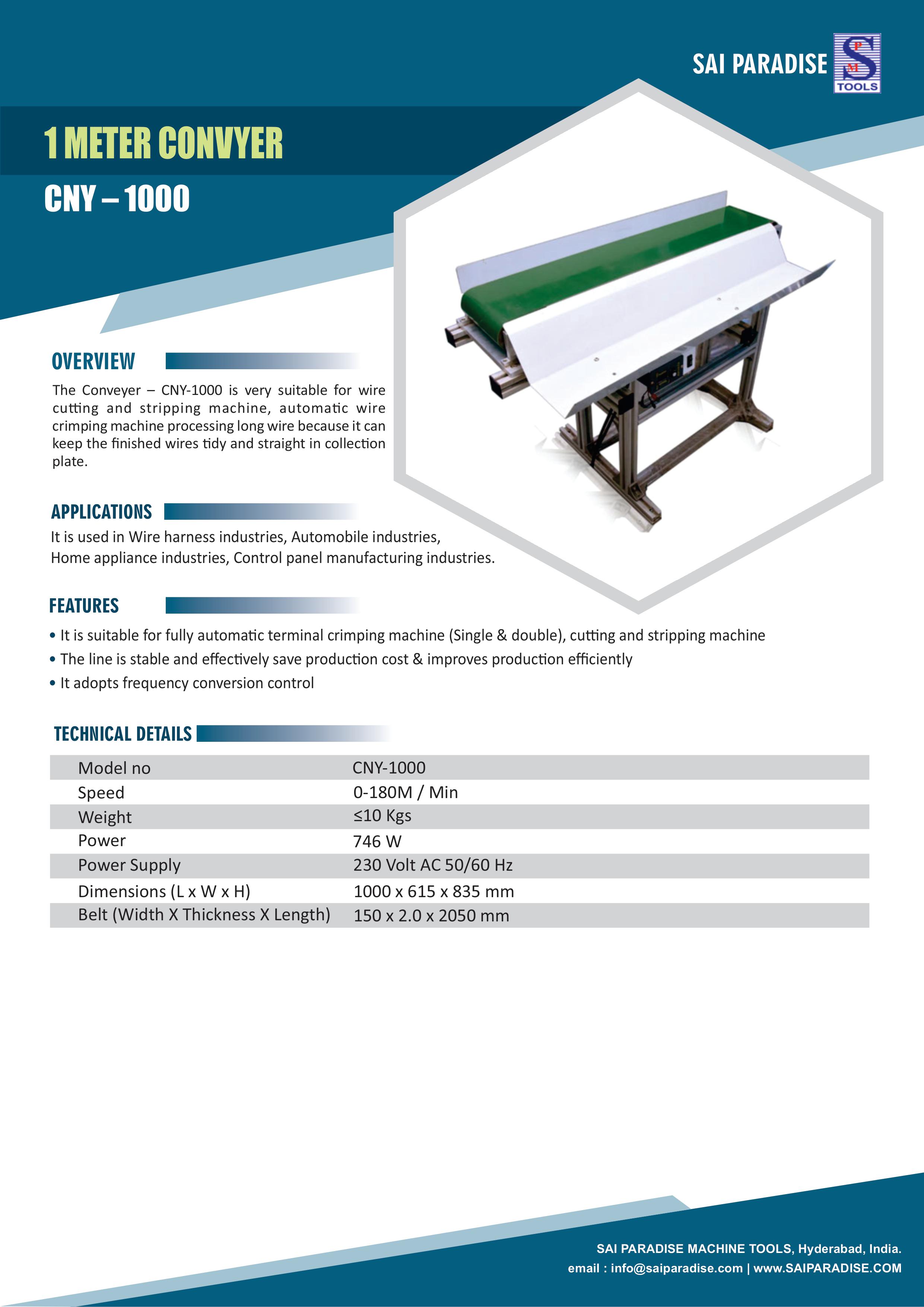

1 Meter Convyer – (CNY – 1000)

Description

The Conveyer – CNY-1000 is very suitable for wire cutting and stripping machine, automatic wire crimping machine processing long wire because it can keep the finished wires tidy and straight in collection plate.

Features
  • It is suitable for fully automatic terminal crimping machine (Single & double), cutting and stripping machine
  • The line is stable and effectively save production cost & improves production efficiently
  • It adopts frequency conversion control
Applications

It is used in Wire harness industries, Automobile industries, Home appliance industries, Control panel manufacturing industries.

Technical Details
Model no CNY-1000
Speed 0-180M / Min
Weight ≤10 Kgs
Power 746 W
Power Supply 230 Volt AC 50/60 Hz
Dimensions (L x W x H) 1000 x 615 x 835 mm
Belt (Width X Thickness X Length) 150 x 2.0 x 2050 mm
