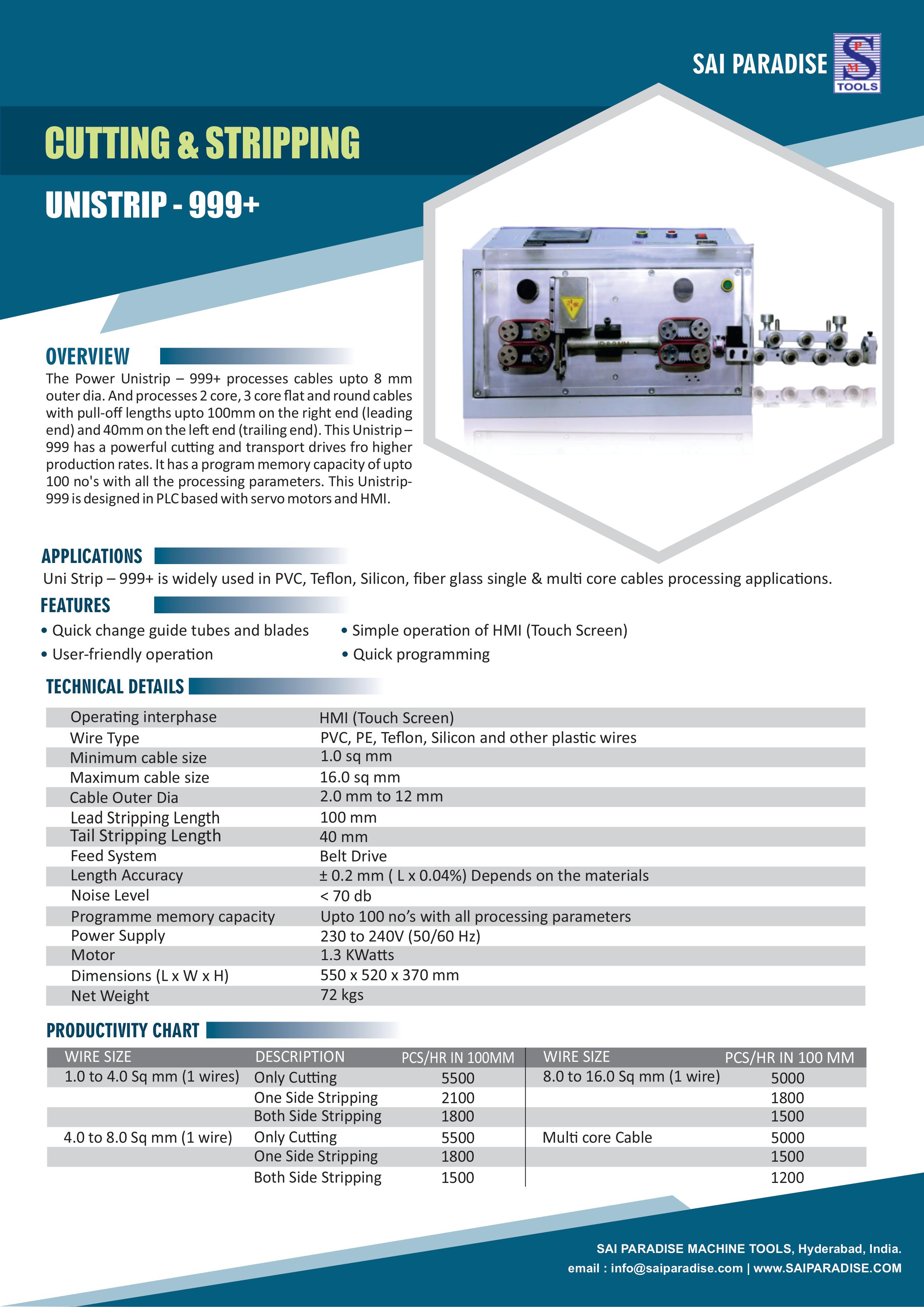

Cutting & Stripping (Unistrip-999+)

Description

The Power Unistrip – 999+ processes cables upto 8 mm outer dia. And processes 2 core, 3 core flat and round cables with pull-off lengths upto 100mm on the right end (leading end) and 40mm on the left end (trailing end). This Unistrip – 999 has a powerful cutting and transport drives fro higher production rates. It has a program memory capacity of upto 100 no's with all the processing parameters. This Unistrip-999 is designed in PLC based with servo motors and HMI.

Features

Quick change guide tubes and blades
Simple operation of HMI (Touch Screen)
User-friendly operation
Quick programming
Mid-strip facility available (optaional)

Applications

Uni Strip – 999+ is widely used in PVC, Teflon, Silicon, fiber glass single & multi core cables processing applications.

Technical Details

Operating interphase	HMI (Touch Screen)
Wire Type	PVC, PE, Teflon, Silicon and other plastic wires
Minimum cable size	1.0 sqmm
Maximum cable size	16.0 sq mm
Cable Outer Dia	2.0 mm to 12mm
Lead Stripping Length	100 mm
Tail Stripping Length	40 mm
Feed System	Belt Drive
Length Accuracy	±0.2 mm ( L x 0.04%) Depends on the materials
Noise Level	< 70 db
Programme memory capacity	Upto 100 no’s with all processing parameters
Power Supply	230 to 240V (50/60 Hz)
Motor	1.3 KWatts
Dimensions (L x W x H)	550 x 520 x 370 mm
Net Weight	72 kgs

Productivity Chart of Uni-Strip - 999+

Wire Size	Descriptions	pcs/hr in 100mm
1.0 to 4.0 Sq mm (1 wires)	Only Cutting	5500
	One Side Stripping	2100
	Both Side Stripping	1800
4.0 to 8.0 Sq mm (1 wire)	Only Cutting	5500
	One Side Stripping	1800
	Both Side Stripping	1500
8.0 to 16.0 Sq mm (1 wire)	Only Cutting	5000
	One Side Stripping	1800
	Both Side Stripping	1500
Multi core Cable	Only Cutting	5000
	One Side Stripping	1500
	Both Side Stripping	1200
