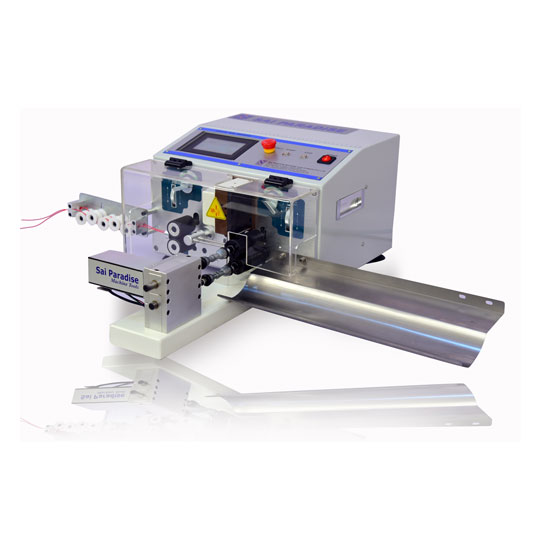

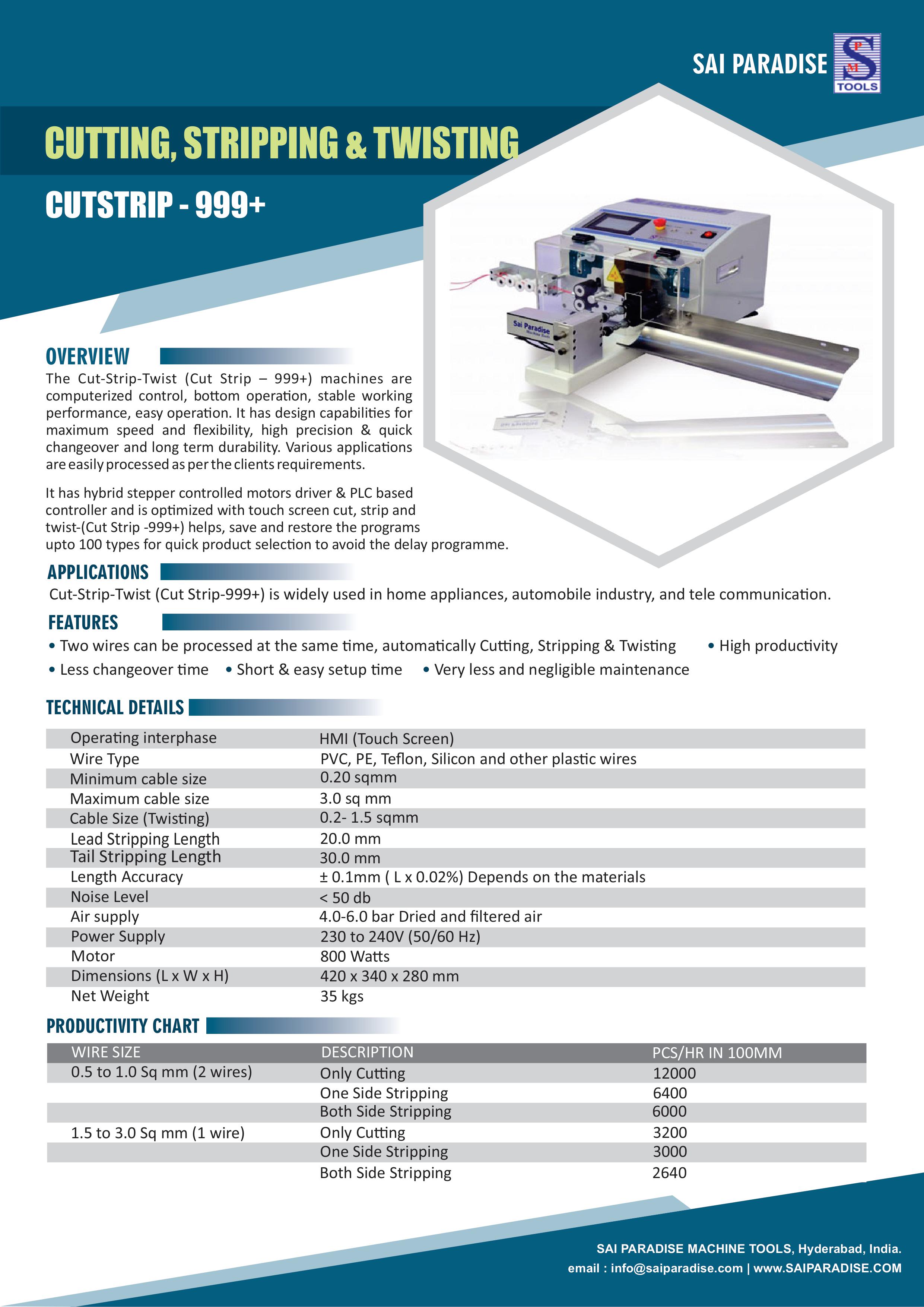

Cutting, Stripping & Twisting (CutStrip-999+)

Description

The Cut-Strip-Twist (Cut Strip – 999+) machines are computerized control, bottom operation, stable working performance, easy operation. It has design capabilities for maximum speed and flexibility, high precision & quick changeover and long term durability. Various applications are easily processed as per the clients requirements.

It has hybrid stepper controlled motors driver & PLC based controller and is optimized with touch screen cut, strip and twist-(Cut Strip -999+) helps, save and restore the programs upto 100 types for quick product selection to avoid the delay programme.

Features
  • Two wires can be processed at the same time, automatically Cutting, Stripping & Twisting
  • High productivity
  • Less changeover time
  • Short & easy setup time
  • Very less and negligible maintenance
Applications

Cut-Strip-Twist (Cut Strip-999+) is widely used in home appliances, automobile industry, and tele communication.

Technical Details
Operating interphase HMI (Touch Screen)
Wire Type PVC, PE, Teflon, Silicon and other plastic wires
Minimum Cable Size 0.20 sqmm
Maximum Cable Size 3.0 sq mm
Cable Size (Twisting) 0.2- 1.5 sqmm
Lead Stripping Length 20.0 mm
Tail Stripping Length 30.0 mm
Length Accuracy ±0.1mm ( L x 0.02%) Depends on the materials
Noise Level < 50 db
Air supply 4.0-6.0 bar Dried and filtered air
Power Supply 230 to 240V (50/60 Hz)
Motor 800 Watts
Dimensions (L x W x H) 420 x 340 x 280 mm
Net Weight 35 kgs
Productivity Chart of Cutstrip - 999+
Wire Size Descriptions pcs/hr in 100mm
0.5 to 1.0 Sq mm (2 wires) Only Cutting 12000
One Side Stripping 6400
Both Side Stripping 6000
1.5 to 3.0 Sq mm (1 wire) Only Cutting 3200
One Side Stripping 3000
Both Side Stripping 2640
