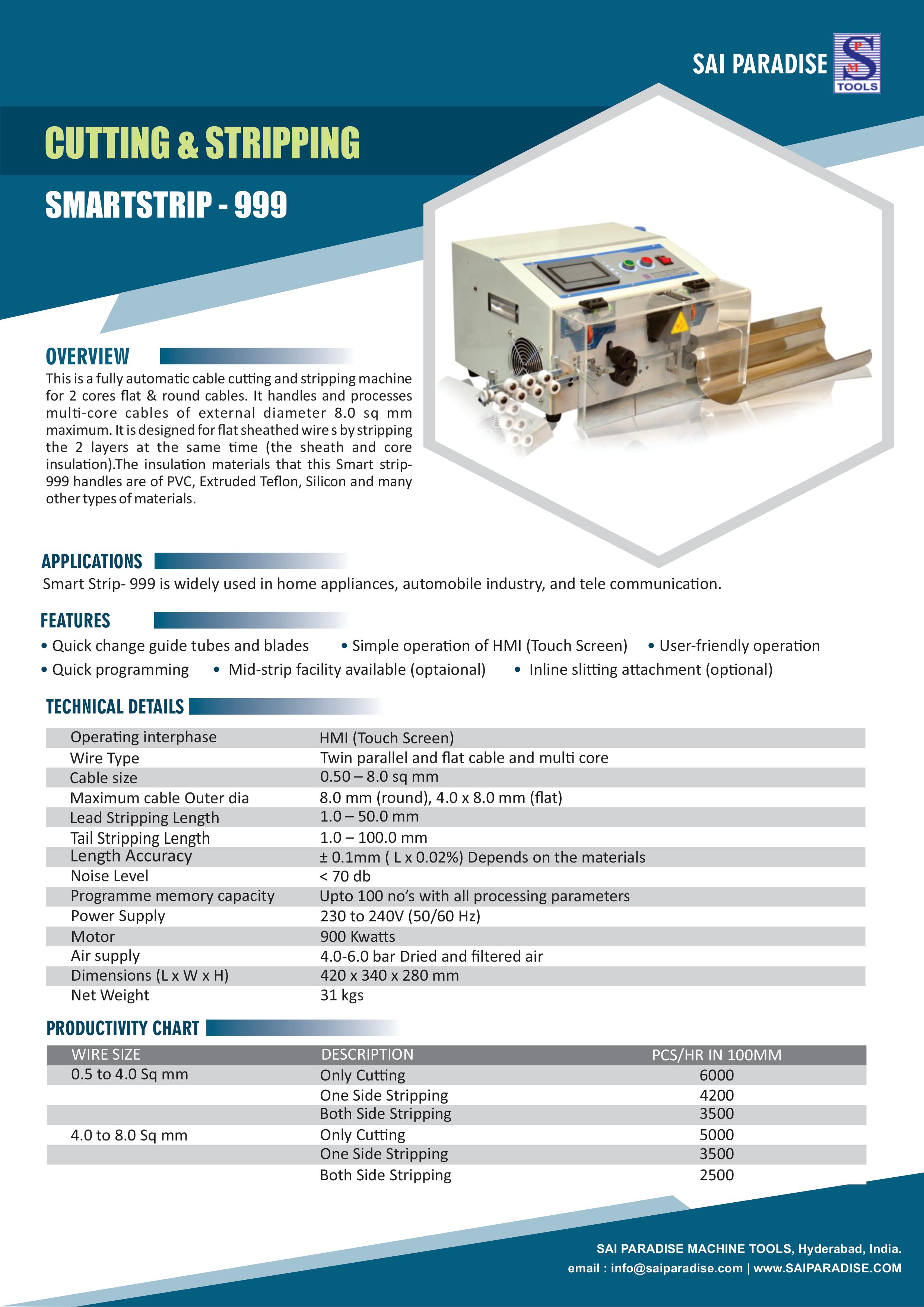

Cutting & Stripping (Smartstrip – 999)

Description

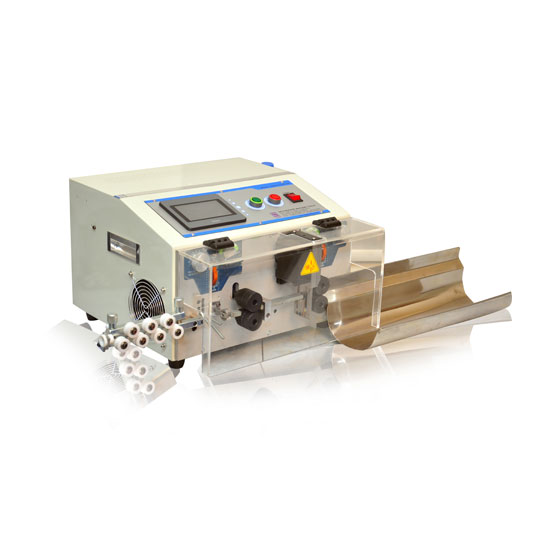

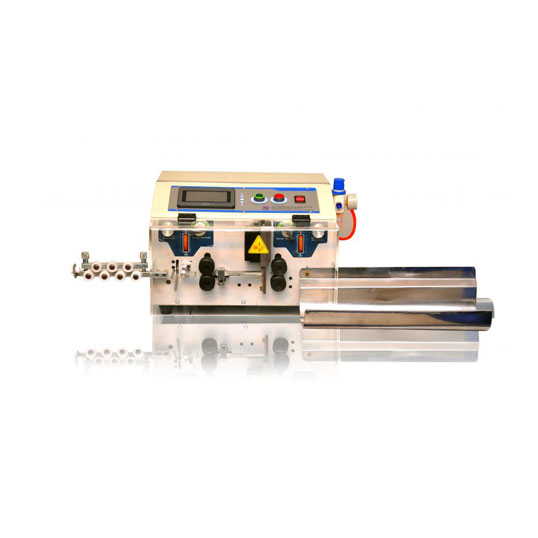

This is a fully automatic cable cutting and stripping machine for 2 cores flat & round cables. It handles and processes multi-core cables of external diameter 8.0 sqmm maximum. It is designed for flat sheathed wire s by stripping the 2 layers at the same time (the sheath and core insulation).The insulation materials that this Smart strip-999 handles are of PVC, Extruded Teflon, Silicon and many other types of materials.

Features

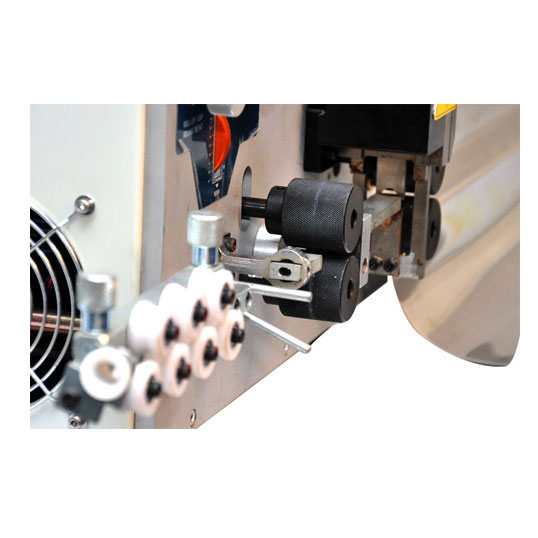

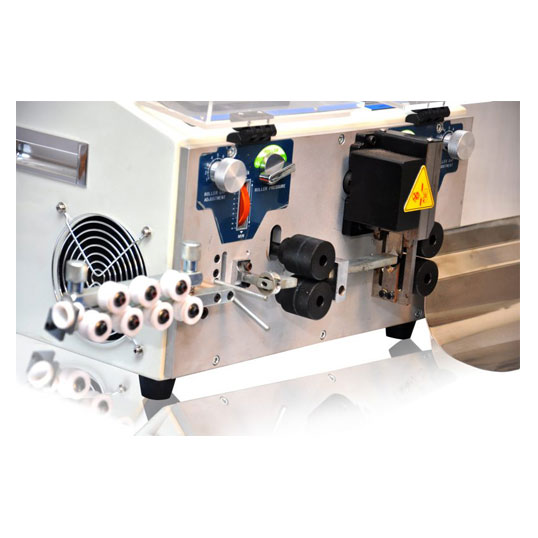

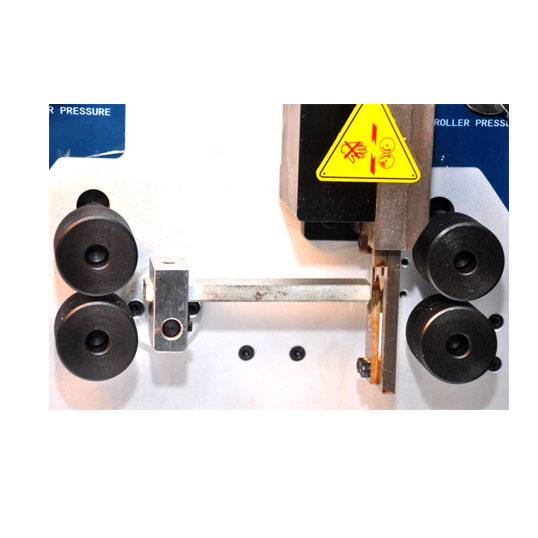

Quick change guide tubes and blades
Simple operation of HMI (Touch Screen)
User-friendly operation
Quick programming
Inline slitting attachment (optional)

Applications

Smart Strip- 999 is widely used in home appliances, automobile industry, and tele communication.

Technical Details

Operating interphase	HMI (Touch Screen)
Wire Type	Twin parallel and flat cable and multi core
Cable size	0.50 – 8.0 sqmm
Maximum cable Outer dia	8.0 mm (round), 4.0 x 8.0 mm (flat)
Tail Stripping Length	1.0 – 50.0 mm
Lead Stripping Length	1.0 – 100.0 mm
Length Accuracy	±0.1mm ( L x 0.02%) Depends on the materials
Noise Level	< 70 db
Programme memory capacity	Upto 100 no’s with all processing parameters
Power Supply	230 to 240V (50/60 Hz)
Motor	900 KWatts
Air supply	4.0-6.0 bar Dried and filtered air
Dimensions (L x W x H)	420 x 340 x 280 mm
Net Weight	31 kgs

Productivity Chart of Smart-Strip - 999

Wire Size	Descriptions	pcs/hr in 100mm
0.5 to 4.0 Sq mm	Only Cutting	6000
	One Side Stripping	4200
	Both Side Stripping	3500
4.0 to 8.0 Sq mm	Only Cutting	5000
	One Side Stripping	3500
	Both Side Stripping	2500
