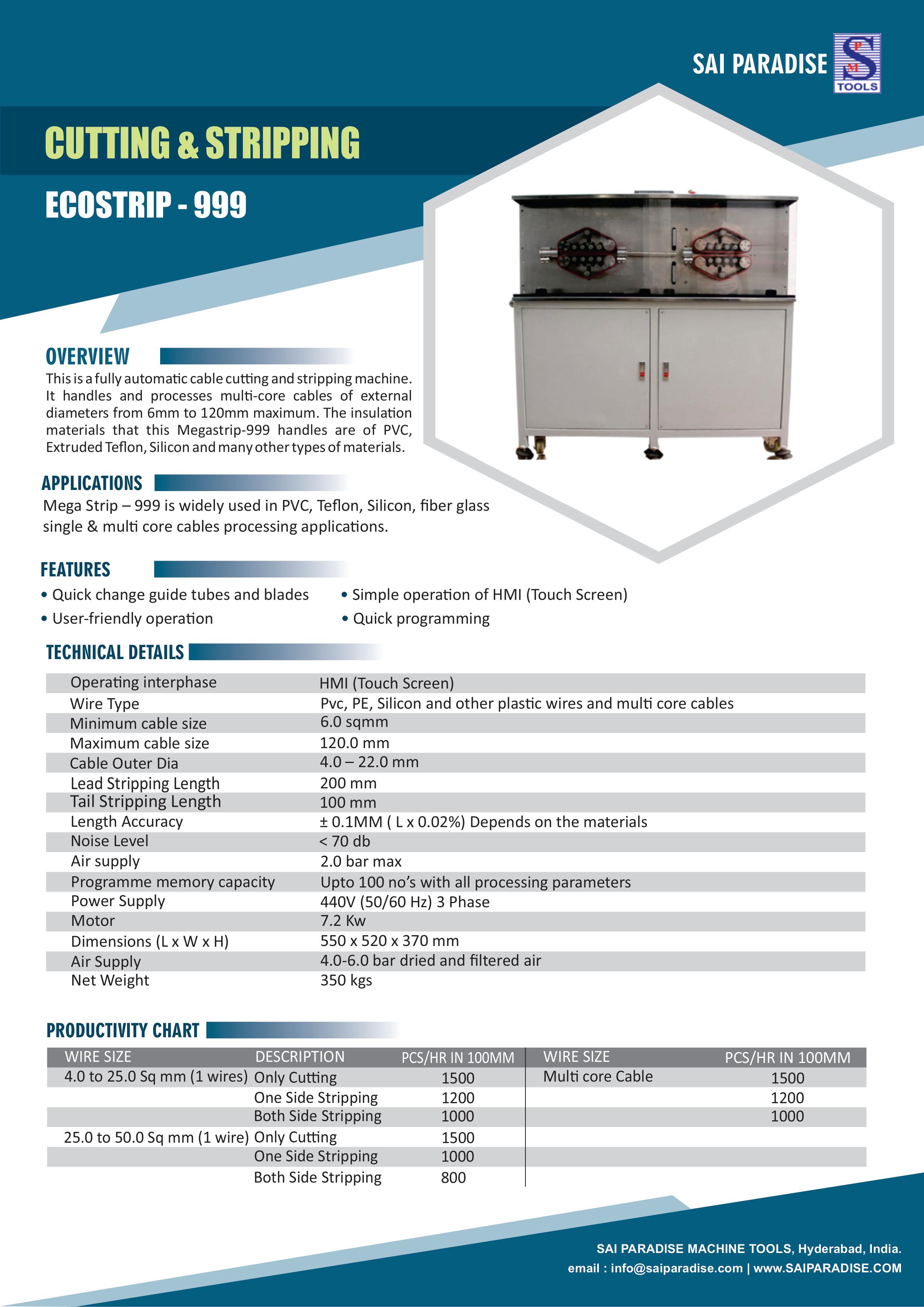

Cutting & Stripping – (Ecostrip – 999)

Description

The powerful Eco-Strip-999 processes round cables upto 4 mm – 50 mm outer dia. It has a powerful cutting and transport drives for higher production rates. This Eco strip-999 is designed in PLC based with hybrid stepper motors and HMI (Touch Screen).

Features

Quick change guide tubes and blades
Simple operation of HMI (Touch Screen)
User-friendly operation
Quick programming

Applications

Eco Strip-999 is an automatic measuring and cutting machine. It will process round materials including of wires, cables and so on in PVC, rubber, battery cables, Teflon, fiber glass materials to name a few.

Technical Details

Operating interphase	HMI (Touch Screen)
Wire Type	Pvc, PE, Silicon and other plastic wires and multi core cables
Minimum cable size	4.0 sqmm
Maximum cable size	50.0 mm
Cable Outer Dia	4.0 – 18.0 mm
Lead Stripping Length	80 mm
Tail Stripping Length	50 mm
Length Accuracy	±0.1MM ( L x 0.02%) Depends on the materials
Noise Level	< 70 db
Air supply	2.0 bar max
Programme memory capacity	Upto 99 no’s with all processing parameters
Power Supply	230 to 240V (50/60 Hz)
Motor	1.6 Kw
Dimensions (L x W x H)	550 x 520 x 370 mm
Net Weight	85 kgs

Productivity Chart of Eco-Strip - 999

Wire Size	Descriptions	pcs/hr in 100mm
4.0 to 25.0 Sq mm (1 wires)	Only Cutting	3000
	One Side Stripping	1900
	Both Side Stripping	2100
25.0 to 50.0 Sq mm (1 wire)	Only Cutting	3000
	One Side Stripping	1800
	Both Side Stripping	1500
Multi core Cable	Only Cutting	3000
	One Side Stripping	1500
	Both Side Stripping	1400
