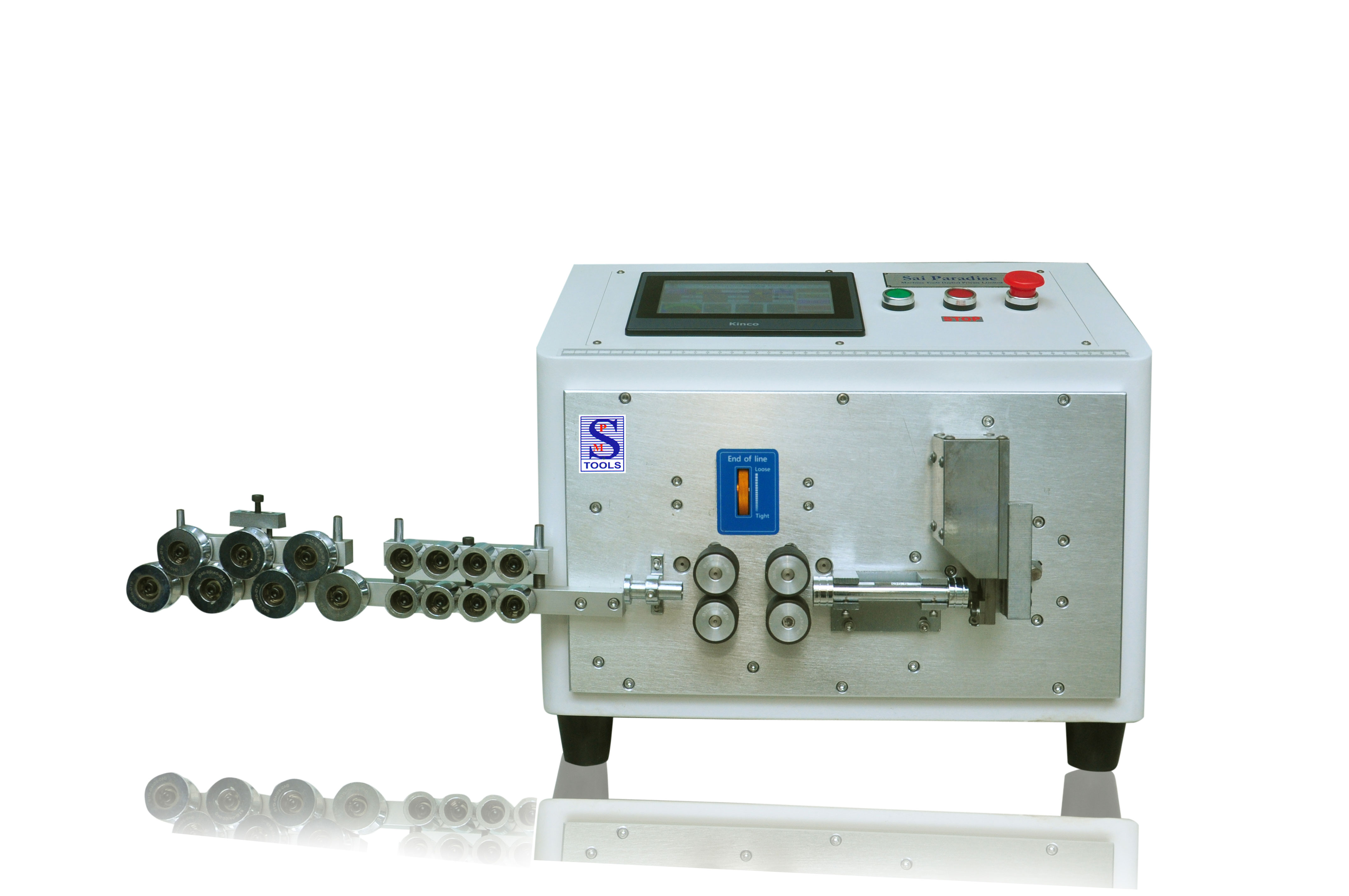

Cutting, Stripping and Bending (CSB – 16)

Description

The powerful cut strip bend, CSB-16 machine process round cable upto 16 Sqmm and its strip both side. It as a powerful cutting and transport for higher rate. It has a programme memory capacity of upto 100 no's with all the processing parameters. This machine is designed in micro processer based with hybrid step motors and HMI (Touch Screen).

Features

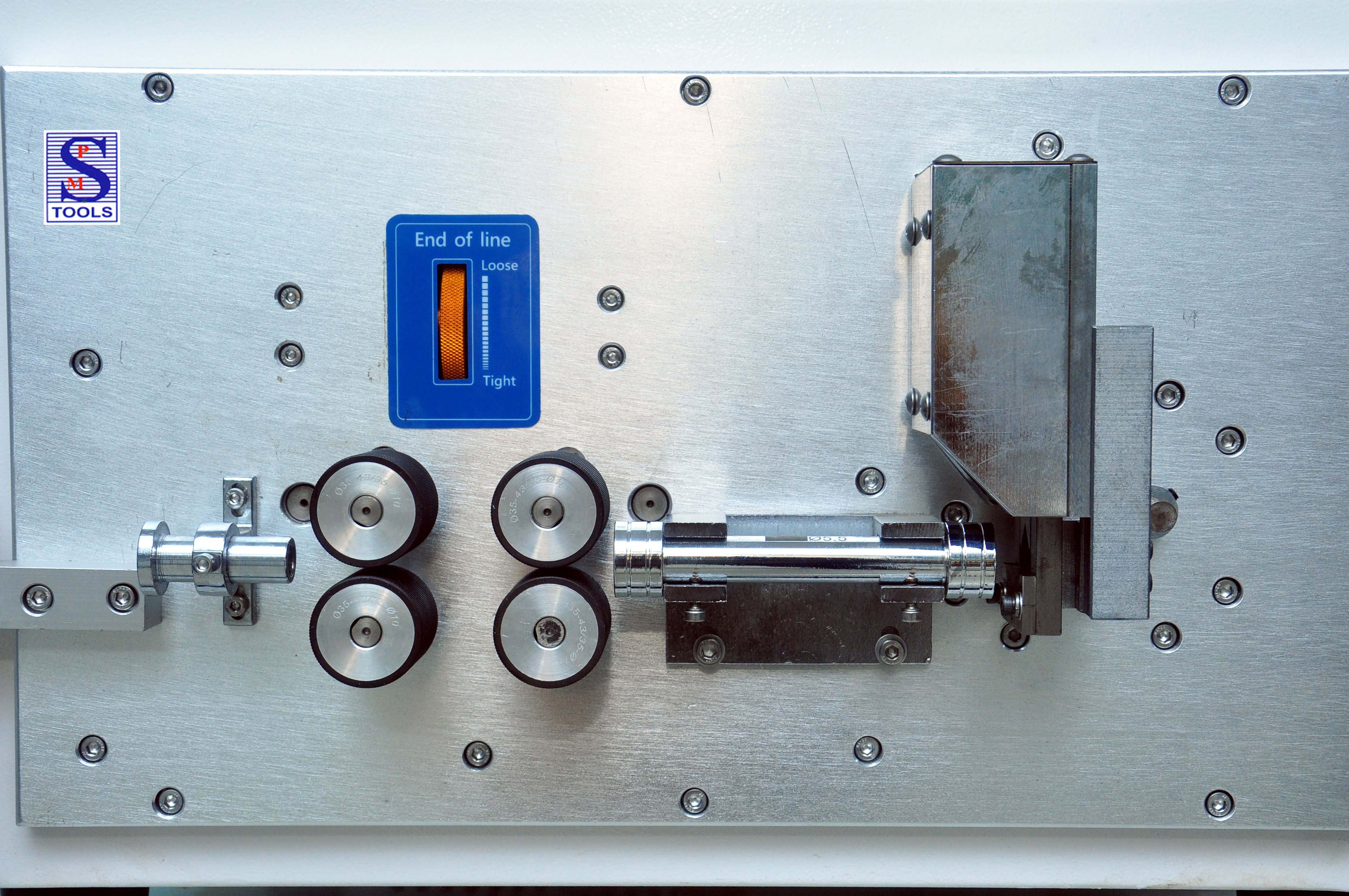

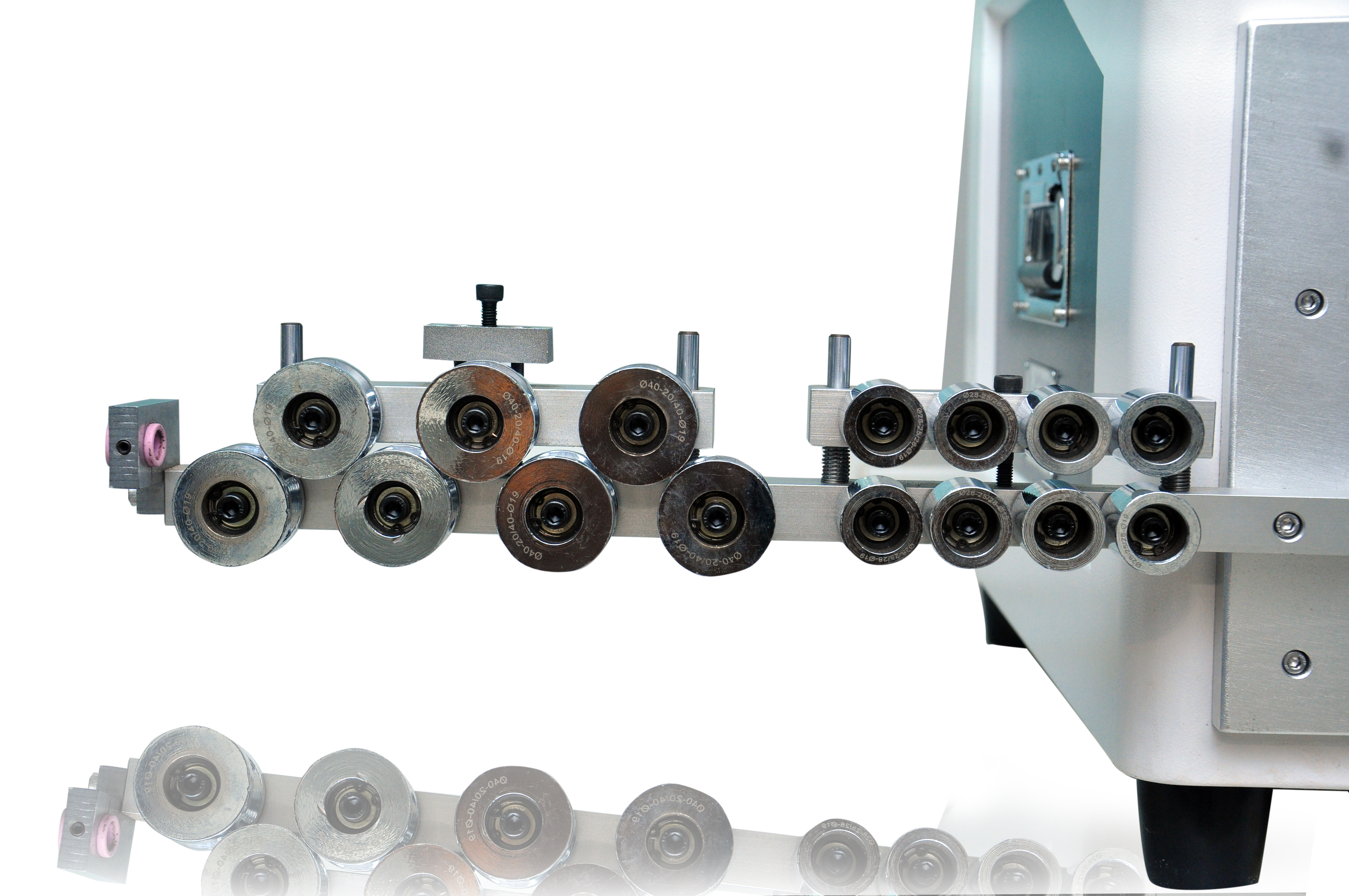

  • Quick change guide tubes and blades.
  • Simple operatoin with HMI (Touch Screen).
  • User friendly operation.
  • Quick programming.
Applications

It is used in Wire Harness Industries, Home Appliance Industries,
Control Panel Manufacturing Industries.

Technical Details
Wire Range 1-16 mm² BV Hard wire cutting, stripping and bending.

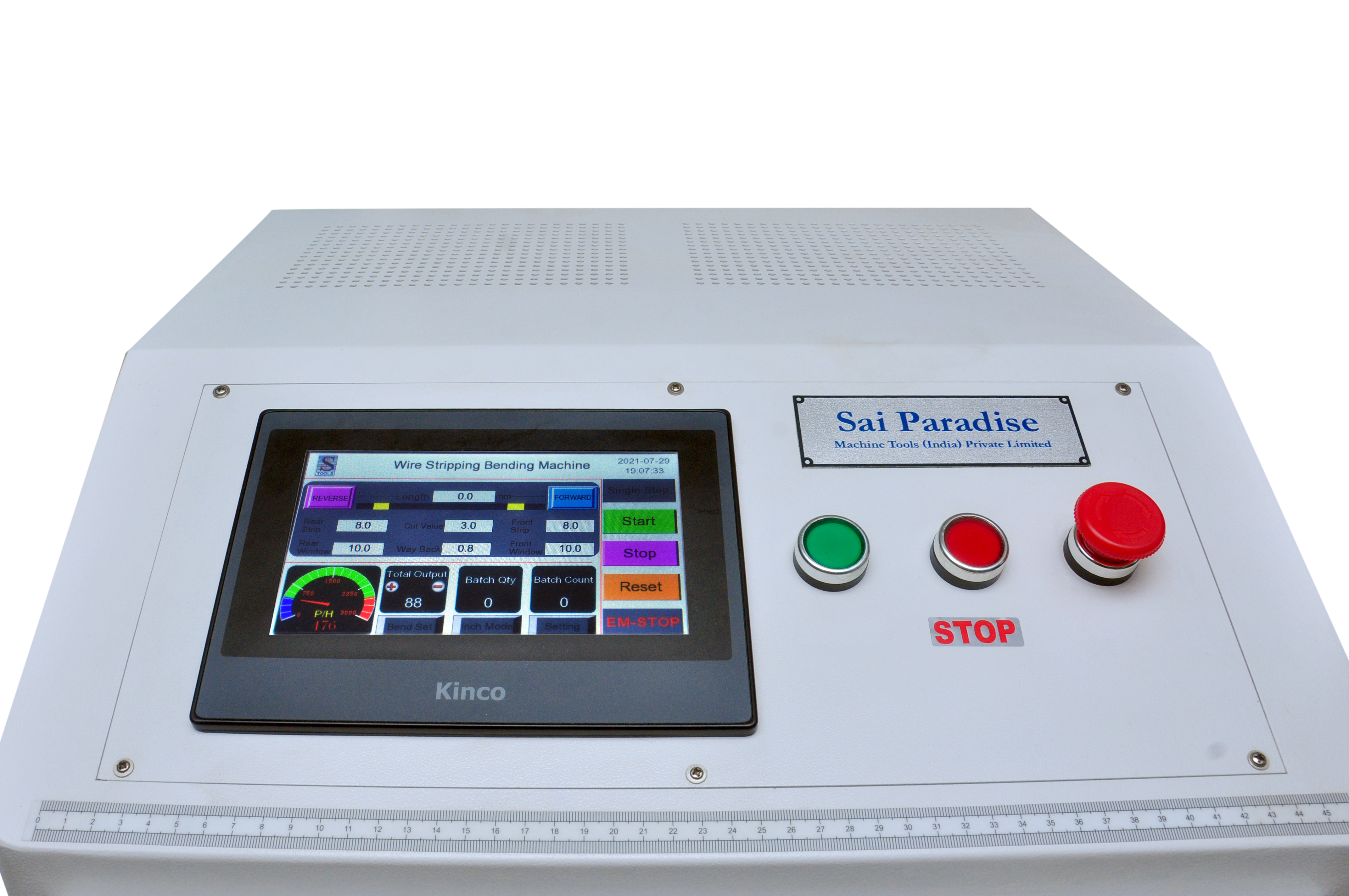

Display 7 inch touch screen display
Voltage 230 Volt AC (50/60 HZ)
Power 1000 W
Dimension (L x W x h) 510 X 560 X 450
Cutting Length 100 mm – 9999 mm
Stripping Length 2.0 mm – 30 mm
Number of bending 16
Bending Length ≥ 33 mm
Bending way Clockwise and Counterclockwise, adjustable bending degree, 300, 450, 600, 900
Length Accuracy 0.2 mm (L X 0.02%) Depends on the material
Blades material Imported high speed steel (HSS)
