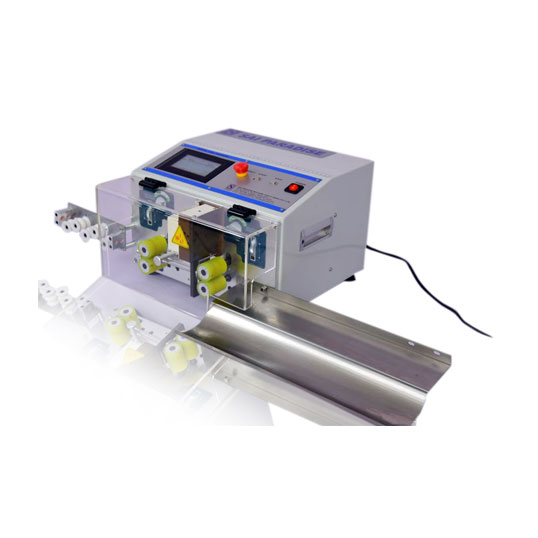

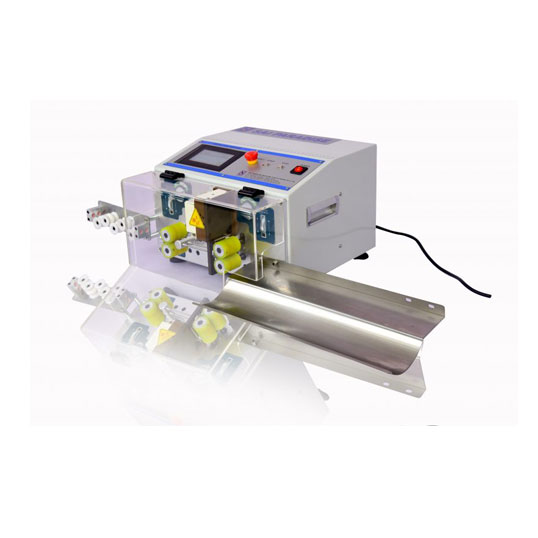

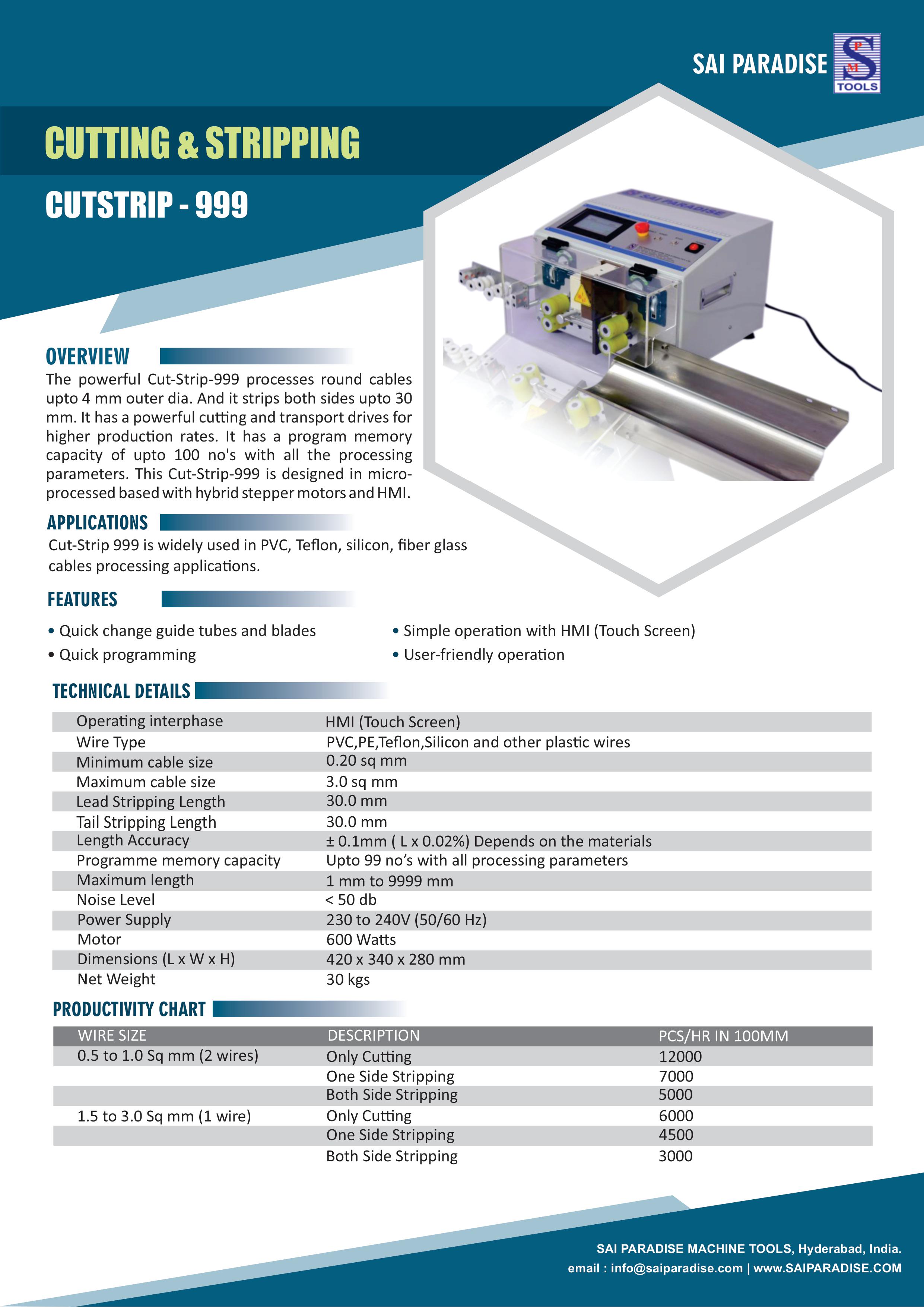

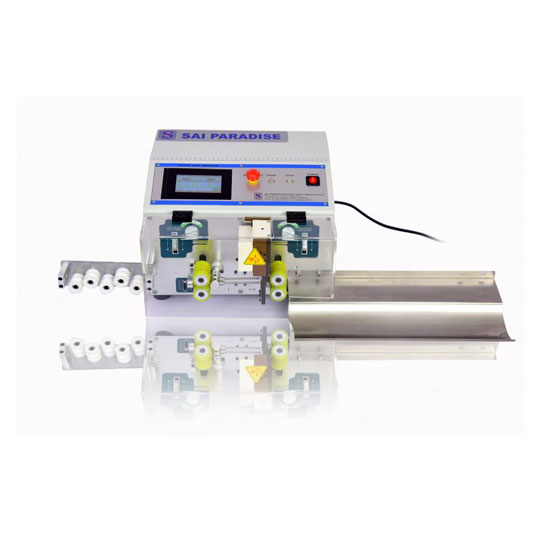

Cutting & Stripping (Cutstrip – 999)

Description

The powerful Cut-Strip-999 processes round cables upto 4 mm outer dia. And it strips both sides upto 30 mm. It has a powerful cutting and transport drives for higher production rates. It has a program memory capacity of upto 100 no's with all the processing parameters. This Cut-Strip-999 is designed in micro-processed based with hybrid stepper motors and HMI.

Features

Quick change guide tubes and blades
Simple operation with HMI (Touch Screen)
User-friendly operation
Quick programming

Applications

Cut-Strip 999 is widely used in PVC, Teflon, silicon, fiber glass cables processing applications.

Technical Details

Operating interphase	HMI (Touch Screen)
Wire Type	PVC,PE,Teflon,Silicon and other plastic wires
Minimum cable size	0.20 sqmm
Maximum cable size	3.0 sq mm
Lead Stripping Length	30.0 mm
Tail Stripping Length	30.0 mm
Length Accuracy	±0.1mm ( L x 0.02%) Depends on the materials
Programme memory capacity	Upto 100 no’s with all processing parameters
Maximum length	1mm to 9999 mm
Noise Level	< 50 db
Power Supply	230 to 240V (50/60 Hz)
Motor	600 Watts
Dimensions (L x W x H)	420 x 340 x 280 mm
Net Weight	30 kgs

Productivity Chart of Cutstrip - 999

Wire Size	Descriptions	pcs/hr in 100mm
0.5 to 1.0 Sq mm (2 wires)	Only Cutting	12000
	One Side Stripping	7000
	Both Side Stripping	5000
1.5 to 3.0 Sq mm (1 wire)	Only Cutting	6000
	One Side Stripping	4500
	Both Side Stripping	3000
