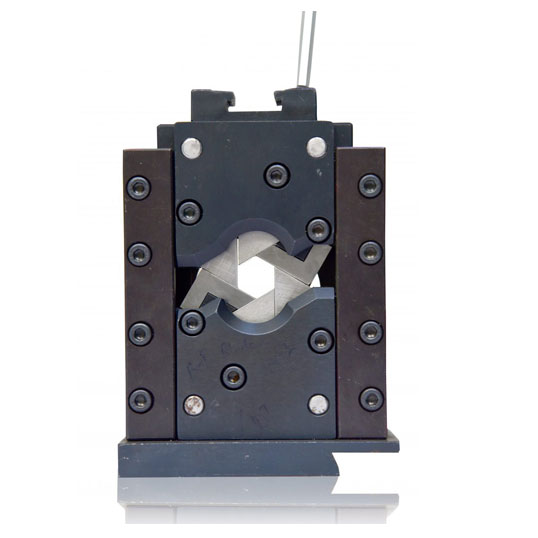

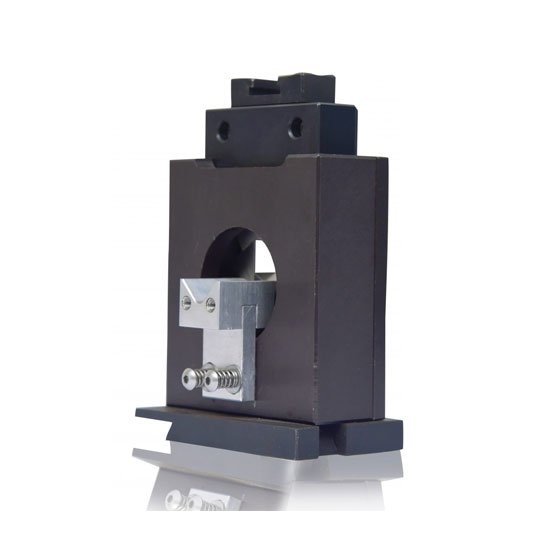

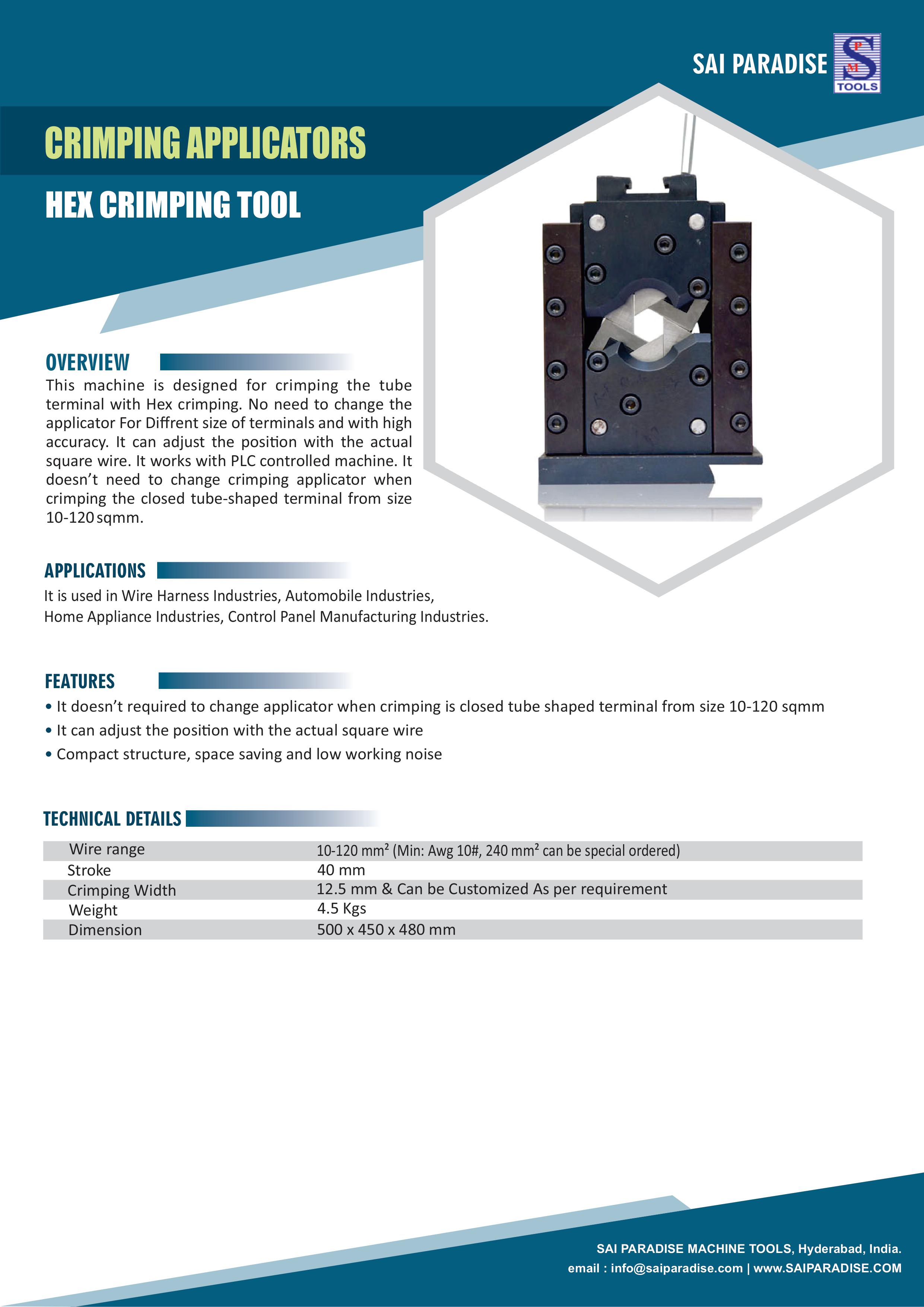

Crimping Applicator – (Hex Crimping Tool)

Description

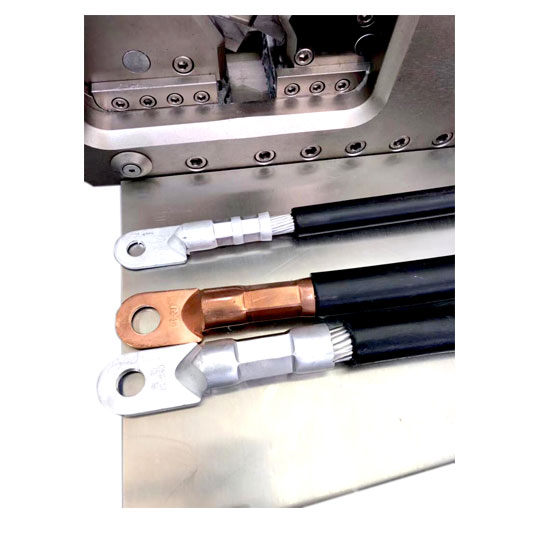

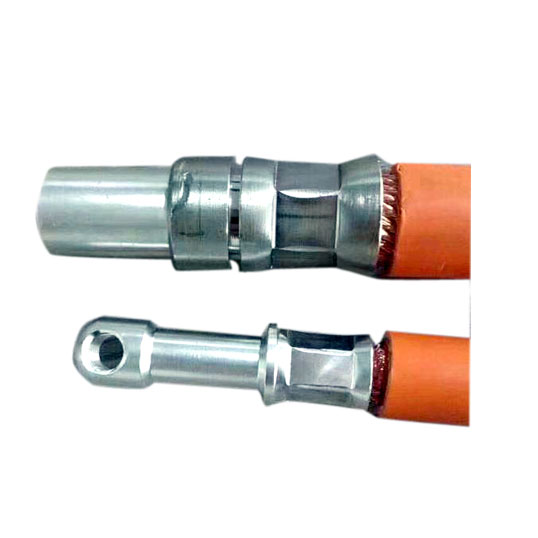

This machine is designed for crimping the tube terminal with Hex crimping. No need to change the applicator For Diffrent size of terminals and with high accuracy. It can adjust the position with the actual square wire. It works with PLC controlled machine. It doesn’t need to change crimping applicator when crimping the closed tube-shaped terminal from size 10-120 sqmm.

Features
  • It doesn’t required to change applicator when crimping is closed tube shaped terminal from size 10-120 sqmm
  • It can adjust the position with the actual square wire
  • Compact structure, space saving and low working noise
Applications

It is used in Wire Harness Industries, Automobile Industries, Home Appliance Industries, Control Panel Manufacturing Industries.

Technical Details
Wire range 10-120 mm² (Min: Awg 10#, 240 mm² can be special ordered)
Stroke 40 mm
Crimping width 12.5 mm & Can be Customized As per requirement
Weight 4.5 Kgs
Dimension 500 x 450 x 480 mm
