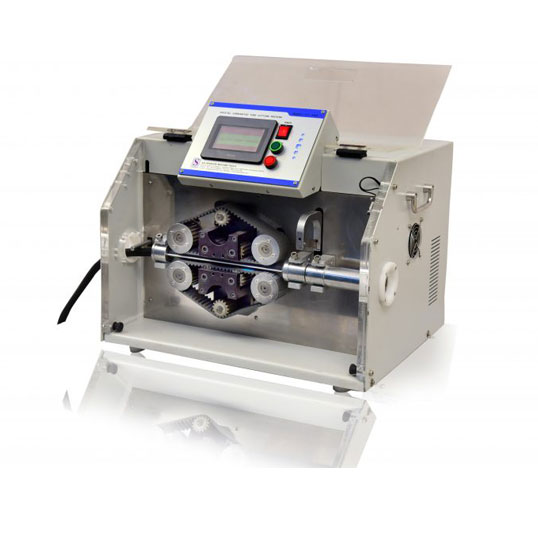

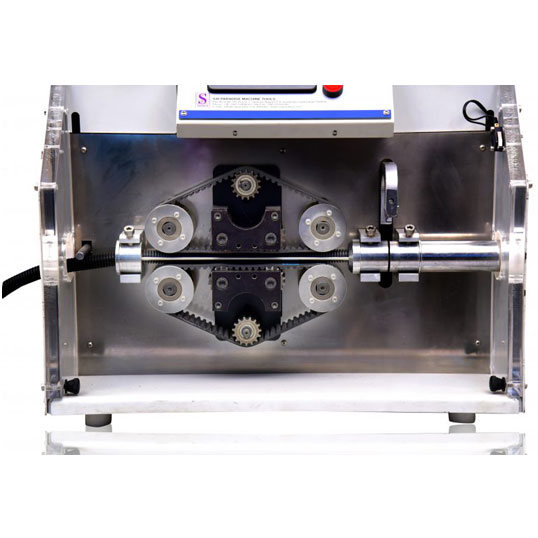

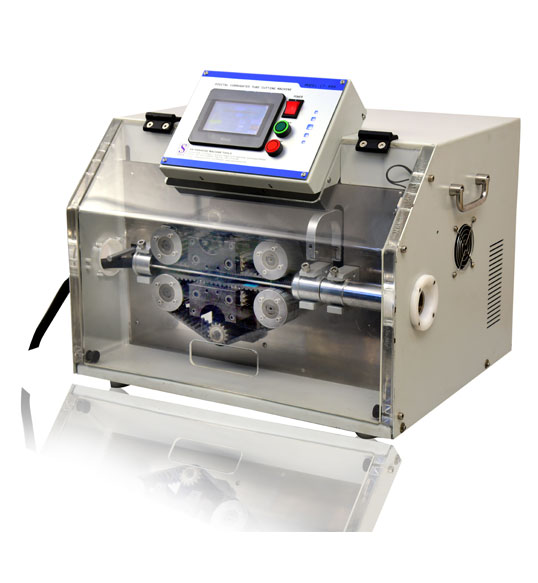

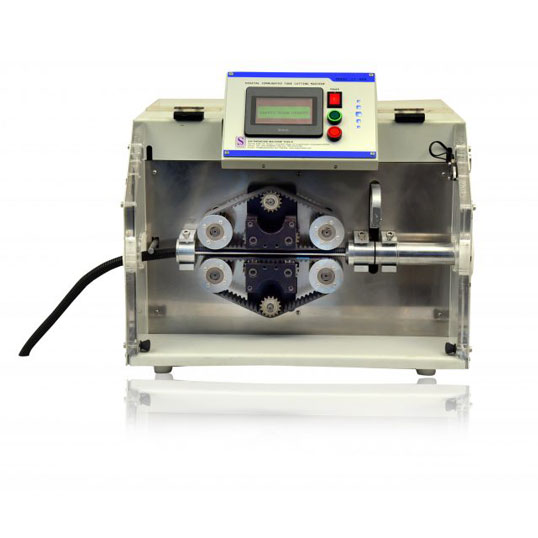

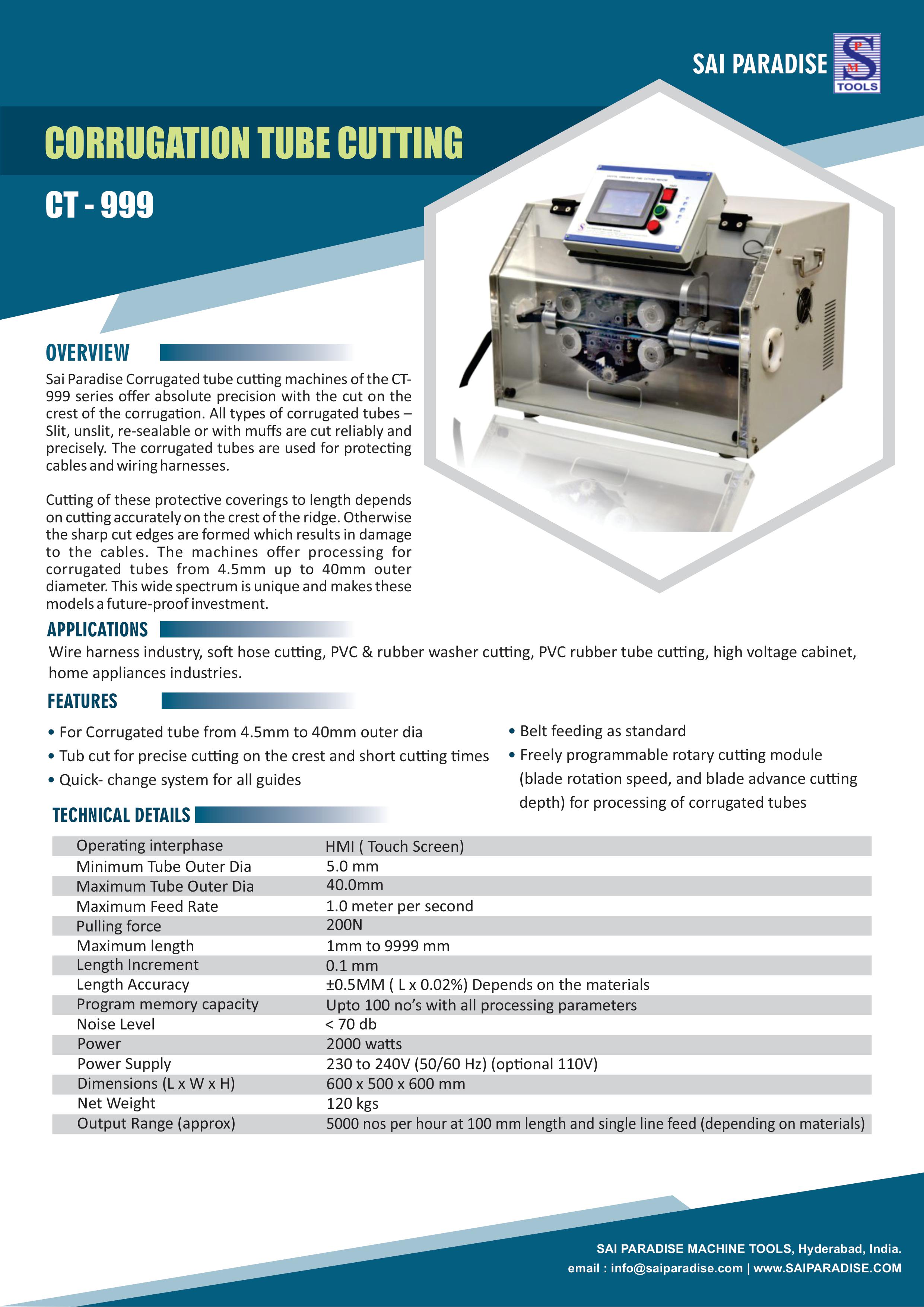

Corrugation Tube Cutting (CT – 999)

Description

Sai Paradise Corrugated tube cutting machines of the CT-999 series offer absolute precision with the cut on the crest of the corrugation. All types of corrugated tubes – Slit, unslit, re-sealable or with muffs are cut reliably and precisely. The corrugated tubes are used for protecting cables and wiring harnesses.

Cutting of these protective coverings to length depends on cutting accurately on the crest of the ridge. Otherwise the sharp cut edges are formed which results in damage to the cables. The machines offer processing for corrugated tubes from 4.5mm up to 40mm outer diameter. This wide spectrum is unique and makes these models a future-proof investment.

Features
  • For Corrugated tube from 4.5mm to 40mm outer dia
  • Tub cut for precise cutting on the crest and short cutting times
  • Quick- change system for all guides
  • Belt feeding as standard
  • Freely programmable rotary cutting module (blade rotation speed, and blade advance cutting depth) for processing of corrugated tubes
Applications

Wire harness industry, soft hose cutting, PVC & rubber washer cutting, PVC rubber tube cutting, high voltage cabinet, home appliances industries.

Technical Details
Operating interphase HMI (Touch Screen)
Minimum Tube Outer Dia 5.0 mm
Maximum Tube Outer Dia 40.0 mm
Maximum Feed Rate 1.0 meter per second
Pulling force 200N
Maximum length 1mm to 9999 mm
Length Increment 0.1 mm
Length Accuracy ±0.5MM ( L x 0.02%) Depends on the materials
Program memory capacity Upto 100 no’s with all processing parameters
Noise Level < 70 db
Power 2000 watts
Power Supply 230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L x W x H) 600 x 500 x 600 mm
Net Weight 120 kgs
Output Range (approx) 5000 nos per hour at 100 mm length and single line feed (depending on materials)
