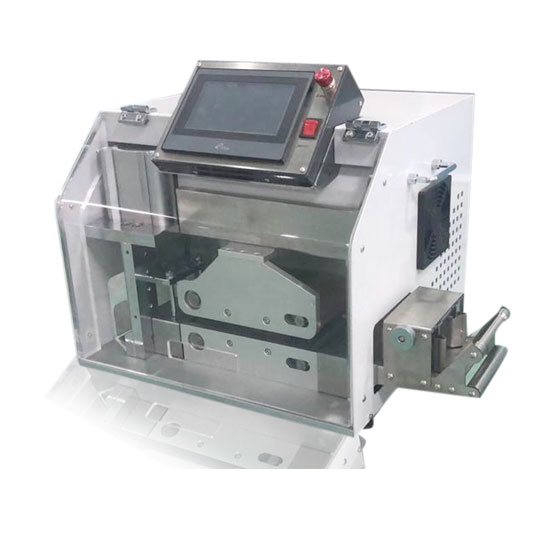

Cable Cutting Machine (HDC – 180)

Description

The setup and operations of the HDC-180 is performed through the use of electronic counters, and PLC based controls and touch screen (HMI) with servo motors. Material guides, tubes and cutting blades are easily replaced for different applications and requirements.

Additional design features includes a Durable Belt feed system and strong cutting mechanism designed for long life and continuous operations.

Features

Durable and robust design for longer life
Multiple material guides for more productivity
Easy programme settings and operations
Fast and hassle-free transport system
All electric operations
Low power consumption
Less wastage
High accuracy
Inch mode option to set the corrections

Applications

HDC-180 is an automatic measuring and cutting machine. It will process flat and round materials including of wires, cables, tubes, sleeves, tapes, labels and screens and so on in PVC, heat – shrink, rubber, Teflon , fiber glass, flat ribbon cables, nylon materials to name a few. It is specially designed for to cut the battery cables and higher grade materials.

Technical Details

Operating interphase	HMI (Touch Screen)
Maximum Tube Outer Dia	30.0 mm
Maximum Cable Outer Dia	25.0 mm
Maximum Cable Size	180 sq mm
Maximum Feed Rate	1.0 meter per second
Pulling force	300N
Maximum length	1mm to 9999 mm
Length Increment	0.1 mm
Length Accuracy	±0.5MM ( L x 0.02%) Depends on the materials
Program memory capacity	Upto 100 no’s with all processing parameters
Noise Level	< 70 db
Power	2000 watts
Power Supply	230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L x W x H)	450 x 500 x 700 mm
Net Weight	140 kgs
Output Range (approx)	2000 nos per hour at 100 mm length and single line feed (depending on materials)
